products details

Home Products

HE300BT Handheld Wireless Bluetooth Barcode Scanner with Low Power Consumption Long Distance Operation and 3mil Minimum Barcode Resolution

Name: HE300BT Handheld Wireless Bluetooth Barcode Scanner with Low Power Consumption Long Distance Operation and 3mil Minimum Barcode Resolution
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: HE300BT
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	HE300BT
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Tumble Test Rating:

2000 Tumbles/0.5m Onto Steel Plate

Ambient Light Tolerance:

0-100,000 Lux

Operating/Storage Temperature:

Operating: -20~50°C; Storage: -40~70°C

Input Voltage:

Sensor Resolution:

VGA: 640*480; Mega: 1280*800

Aiming Method:

VGA: LED Aiming; Mega: Laser Aiming

Minimum Barcode Resolution:

3mil

Minimum Barcode Contrast:

15% Print Contrast (minimum)

Packaging Details:

corrugated paper box

Highlight:

Low Power Consumption Handheld Barcode Scanner

Long Distance Operation Wireless Barcode Scanner

3mil Minimum Barcode Resolution Bluetooth Barcode Scanner

Product Description

HE300BT Handheld Wireless Bluetooth Barcode Scanner

Dual Transmission Technology + Stable Performance, Unlock an Efficient Barcode Scanning Experience! This high-end wireless barcode scanner supports dual-mode Bluetooth and 2.4G transmission, adapting to various usage environments. Its low-power consumption feature reduces charging frequency, while long-distance operation eliminates the need for frequent proximity to devices—balancing practicality and convenience to meet the needs of various commercial scenarios.

Key Features

Ultra-wide field of view for smooth scanning of elongated barcodes
Exceptional shock resistance and drop tolerance with robust construction
Efficient reading of wrinkled and complex barcodes
Ergonomic design for comfortable operation
Dual audible and vibration alerts for noisy environments
OCR recognition and OPOS/JPOS industry interface compatibility

Technical Specifications

Physical Parameters

Dimensions	67×87×183mm
Weight	177g

Electrical Parameters

ESD Protection Level	±15 KV (air discharge); ±8 KV (contact discharge)
Input Voltage	5V

I/O Interfaces

Model H300	USB, RS232; supports button trigger, infrared trigger
Model HE300BT	USB, 2.4G, Bluetooth (compatible with Bluetooth HID, SPP, BLE protocols)

Performance Parameters

Sensor Resolution	VGA: 640×480; Mega: 1280×800
Illumination Type	VGA: White illumination; Mega: Red + White dual illumination
Aiming Method	VGA: LED aiming; Mega: Laser aiming
Minimum Barcode Resolution	3mil
Field of View (FOV)	VGA: 59.3°(D)/49.1°(H)/37.8°(V); Mega: 48°(D)/39°(H)/29.6°(V)
Minimum Barcode Contrast	15% print contrast (minimum)
Scanning Angles	Tilt: ±60°; Roll: ±180°; Skew: ±60°
Barcode Reading Indication	Buzzer, LED indicator; Mega adds vibration alert

Environmental Parameters

Drop Test Rating	VGA: 18 drops/1.5m onto steel plate; Mega: 18 drops/2m onto steel plate, 40,000 drops/5cm light drop
Tumble Test Rating	2000 tumbles/0.5m onto steel plate
IP Rating	VGA: IP52; Mega: IP67 (supports high/low temperature environments)
Ambient Light Tolerance	0-100,000 lux
Operating/Storage Temperature	Operating: -20~50°C; Storage: -40~70°C
Humidity Tolerance	0-95% RH (non-condensing)

Reading Range by Barcode Type

Barcode Type	VGA Range	Mega Range
3mil CODE39	10-180mm	10-90mm
13mil UPC	5-380mm	10-200mm
10mil DM	10-180mm	0-100mm
20mil QR	0-300mm	60-250mm

Decoding Capabilities

2D Barcodes

UCC Composite, Aztec, China Sensible Code, Datamatrix, DotCode, QRCode, Micro QRCode, OCR Code

1D Barcodes

Code EAN/UPC, GS1DataBar(RSS-14), Code39, Code 128(GS1-128), Code EAN 128, Code Standard 2of5, etc. (16 mainstream symbologies)

Postal Codes

Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, etc. (10 postal code types)

Stacked Barcodes

EAN/JAN Composites, GS1 DataBar series, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites

Optional Accessories

Compatible accessories include USB data cable and charging power supply (only for HE300BT model).

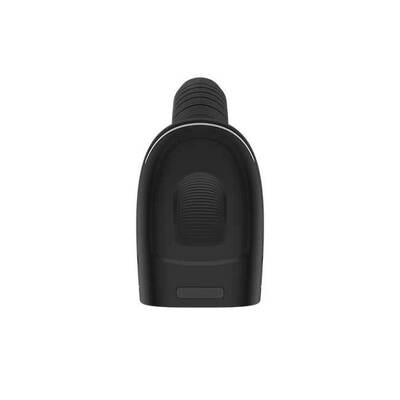

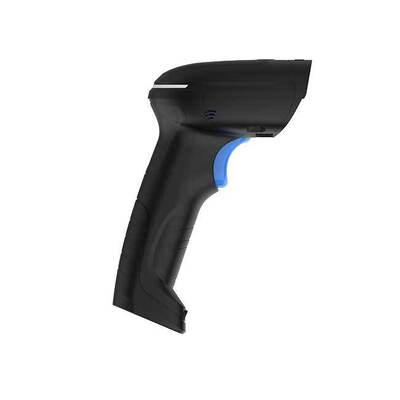

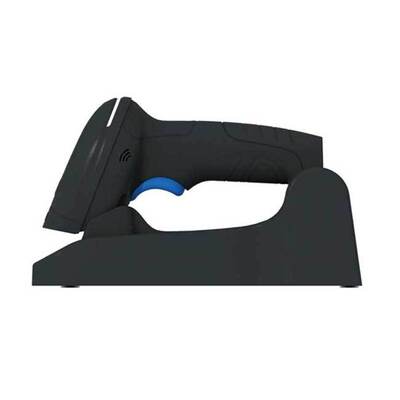

Product Images
