HE200BT Handheld Wireless Barcode Scanner with High-Resolution Professional Engine and Dual-Mode Wireless Communication for Industrial Use

HE200BT Handheld Wireless Barcode Scanner with High-Resolution Professional Engine and Dual-Mode Wireless Communication for Industrial Use

HE200BT Handheld Wireless Barcode Scanner with High-Resolution Professional Engine and Dual-Mode Wireless Communication for Industrial Use

Brand Name: SR
Model Number: HE200BT
MOQ: 10PCS
Price: 13-20usd
Payment Terms: L/C,T/T
Supply Ability: 4000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Scanner Weight:
400g
Base Weight:
350g
Scanner Dimensions:
211×76×100mm
Storage Temperature:
-20℃~70℃
Operating Temperature:
-10℃~50℃
Standby Current:
180mA@5V
Operating Current:
320mA@5V
Operating Voltage:
DC5V±10%
Packaging Details:
corrugated paper box
Highlight:

High-Resolution Professional Engine Handheld Barcode Scanner

,

Dual-Mode Wireless Communication Wireless Barcode Scanner

,

Industrial-Grade Drop Resistance Industrial Barcode Scanner

Product Description
HE200BT Handheld Wireless Barcode Scanner
Professional High-Resolution Engine, Dual-Mode For Industrial Use
Product Overview
The HE200BT Wireless Handheld Barcode Scanner is engineered for demanding industrial-grade data capture scenarios. Equipped with a high-performance professional scanning engine and high-resolution sensor module, this scanner serves as core equipment for efficient operations across warehousing, logistics, manufacturing, retail, wholesale, and other industries, providing robust technical support to reduce costs and boost efficiency.
Key Features
  • Dual-mode wireless communication (Bluetooth 4.0 and 433MHz)
  • Extended transmission range: 200m (433MHz) or 20m (Bluetooth)
  • High-resolution monochrome imaging CMOS sensor
  • Removable 2600mAh battery with over 8 hours continuous scanning
  • Rugged construction withstands 1.5m drops
  • Comprehensive 1D and 2D barcode symbology support
Technical Specifications
Parameter Specifications
Scanning Performance
Image Sensor Monochrome Imaging CMOS
Pixel 1056*1248
Shutter Global Exposure
Illumination White LED (Red/Blue LED optional)
Aiming Red Line LED
Field of View Angle Horizontal 40°, Vertical 31°
Supported Symbologies (2D) Aztec Code,Han Xin Code,Data Matrix,MaxiCode,QR Code,Micro QR,MQR,Dot Code,Grid Matrix,Codablock A,Codablock F,PDF417,Micro PDF417
Supported Symbologies (1D) Codabar,Code11,Code128,ISBT128,Code32,Code39,TLC39,Code93/93i,BC412,UK Plessey,Anker Plessey,EAN-13,EAN-8,GS1,MSI,Telepen,Pharma,PatchCode,UPC-A,UPC-E
Typical Reading Depth* HD: 3mil Code128 80-150mm；5mil Code128 50-180mm；5mil Code39 55-175mm；10mil Code128 40-190mm；13mil EAN13 40-195mm；13mil UPC-A 40-200mm；5.9mil DM/QR 60-120mm；10mil DM/QR 50-175mm；20mil DM/QR 40-260mm
Reading Precision* ≥3mil
Reading Contrast* ≥15%
Reading Angle* Tilt ±60°, Rotation ±360°, Skew ±60°
Mechanical/Electrical Performance
Wireless Frequency Band 433MHz/Bluetooth 4.0 Dual Mode
Wireless Communication Distance 433MHz: 200m in open area; Bluetooth: 20m in open area
LCD Display (Optional) Barcode content display, battery level display, basic configuration, etc.
Battery 2600mAh; Removable battery
Charging Time 4~6 hours
Continuous Scanning Time >8 hours (at 1 scan per second)
Storage Capacity (Storage Mode) >5000 barcodes
Base Communication Interface USB or RS232
Prompt Method LCD display, LED (non-LCD version), buzzer, vibration
Dimension Scanner: 21176100mm; Base: 26210166mm
Weight Scanner: 400g; Base: 350g
Operating Voltage DC5V±10%
Operating Current 320mA@5V
Standby Current 180mA@5V
Environmental Parameters
Operating Temperature -10℃~50℃
Storage Temperature -20℃~70℃
Relative Humidity 5%~95% (no condensation)
Drop Resistance Withstands 50 drops from 1.5m height in air
Ambient Illumination 0~100000LUX

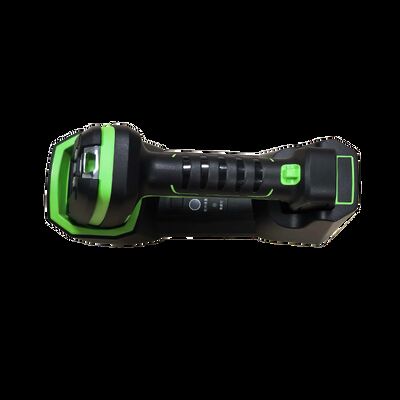

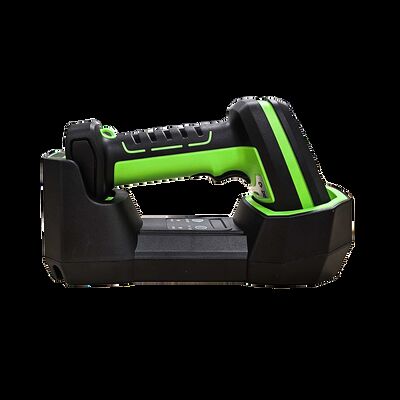

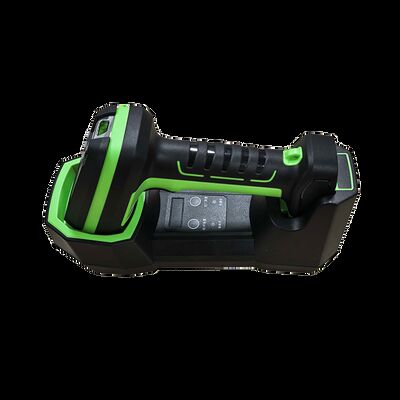

Product Images
HE200BT Handheld Wireless Barcode Scanner with High-Resolution Professional Engine and Dual-Mode Wireless Communication for Industrial Use 0

About US
HE200BT Handheld Wireless Barcode Scanner with High-Resolution Professional Engine and Dual-Mode Wireless Communication for Industrial Use 1
