HE200BT Dual-Mode Wireless High-Resolution Handheld Barcode Scanner with Rugged 1.5m Drop Resistance for Industrial Applications

Name: HE200BT Dual-Mode Wireless High-Resolution Handheld Barcode Scanner with Rugged 1.5m Drop Resistance for Industrial Applications
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: HE200BT
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	HE200BT
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Prompt Method:

LCD Display, LED (non-LCD Version), Buzzer, Vibration

Base Communication Interface:

USB Or RS232

Storage Capacity (Storage Mode):

>5000 Barcodes

Storage Temperature:

-20℃~70℃

Operating Temperature:

-10℃~50℃

Standby Current:

180mA@5V

Operating Current:

320mA@5V

Operating Voltage:

DC5V±10%

Packaging Details:

corrugated paper box

Highlight:

Dual-Mode Wireless Communication Handheld Barcode Scanner

High-Resolution CMOS Sensor Wireless Barcode Scanner

Rugged 1.5m Drop Resistance Industrial Barcode Scanner

Product Description

HE200BT Dual-Mode Wireless High-Resolution Barcode Scanner

Designed to meet demanding industrial-grade data collection requirements, the HE200BT wireless handheld barcode scanner features a high-performance professional scanning engine and high-resolution sensor. This core device enables efficient operations in warehousing, logistics, manufacturing, and other industries, driving cost reduction and productivity gains through cutting-edge technology.

Key Features

Dual-mode wireless communication (Bluetooth 4.0 and 433MHz)
Extended transmission range: 200m (433MHz) or 20m (Bluetooth)
High-resolution monochrome imaging CMOS sensor
Removable 2600mAh battery with over 8 hours continuous scanning
Rugged construction withstands 1.5m drops
Comprehensive 1D and 2D barcode symbology support

Technical Specifications

Scanning Performance
Image Sensor	Monochrome Imaging CMOS
Pixel	1056*1248
Shutter	Global Exposure
Illumination	White LED (Red/Blue LED optional)
Aiming	Red Line LED
Field of View Angle	Horizontal 40°, Vertical 31°
Supported Symbologies (2D)	Aztec Code, Han Xin Code, Data Matrix, MaxiCode, QR Code, Micro QR, MQR, Dot Code, Grid Matrix, Codablock A, Codablock F, PDF417, Micro PDF417
Supported Symbologies (1D)	Codabar, Code11, Code128, ISBT128, Code32, Code39, TLC39, Code93/93i, BC412, UK Plessey, Anker Plessey, EAN-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E
Typical Reading Depth*	HD: 3mil Code128 80-150mm; 5mil Code128 50-180mm; 5mil Code39 55-175mm; 10mil Code128 40-190mm; 13mil EAN13 40-195mm; 13mil UPC-A 40-200mm; 5.9mil DM/QR 60-120mm; 10mil DM/QR 50-175mm; 20mil DM/QR 40-260mm
Reading Precision*	≥3mil
Reading Contrast*	≥15%
Reading Angle*	Tilt ±60°, Rotation ±360°, Skew ±60°
Mechanical/Electrical Performance
Wireless Frequency Band	433MHz/Bluetooth 4.0 Dual Mode
Wireless Communication Distance	433MHz: 200m in open area; Bluetooth: 20m in open area
LCD Display (Optional)	Barcode content display, battery level display, basic configuration, etc.
Battery	2600mAh; Removable battery
Charging Time	4~6 hours
Continuous Scanning Time	>8 hours (at 1 scan per second)
Storage Capacity (Storage Mode)	>5000 barcodes
Base Communication Interface	USB or RS232
Prompt Method	LCD display, LED (non-LCD version), buzzer, vibration
Dimension	Scanner: 21176100mm; Base: 26210166mm
Weight	Scanner: 400g; Base: 350g
Operating Voltage	DC5V±10%
Operating Current	320mA@5V
Standby Current	180mA@5V
Environmental Parameters
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~70℃
Relative Humidity	5%~95% (no condensation)
Drop Resistance	Withstands 50 drops from 1.5m height in air
Ambient Illumination	0~100000LUX

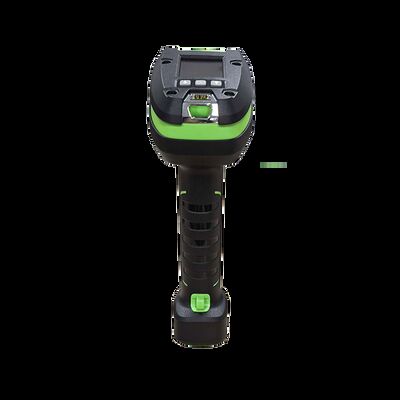

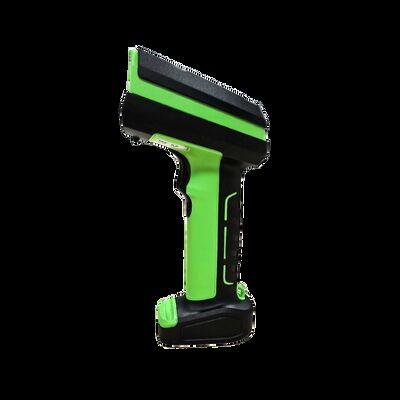

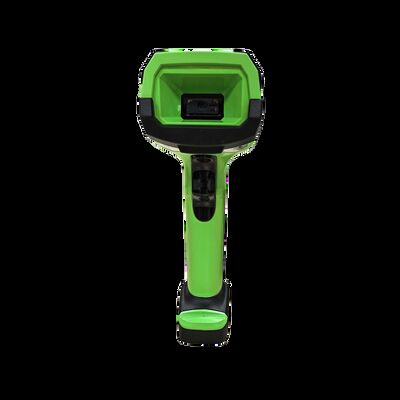

Product Images
