HE200BT Wireless Handheld Barcode Scanner with High-resolution Professional Engine and Dual-mode Wireless Communication for Industrial Data Collection

Name: HE200BT Wireless Handheld Barcode Scanner with High-resolution Professional Engine and Dual-mode Wireless Communication for Industrial Data Collection
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: HE200BT
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	HE200BT
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Ambient Illumination:

0~100000LUX

Drop Resistance:

Withstands 50 Drops From 1.5m Height In Air

Relative Humidity:

5%~95% (no Condensation)

Storage Temperature:

-20℃~70℃

Operating Temperature:

-10℃~50℃

Standby Current:

180mA@5V

Operating Current:

320mA@5V

Operating Voltage:

DC5V±10%

Packaging Details:

corrugated paper box

Highlight:

High-resolution Professional Engine Handheld Barcode Scanner

Dual-mode Wireless Communication Wireless Barcode Scanner

Industrial-grade Drop Resistance Industrial Barcode Scanner

Product Description

HE200BT Wireless Handheld Barcode Scanner

High-resolution professional engine designed for industrial data collection applications

Product Overview

The HE200BT wireless handheld barcode scanner is engineered for industrial-grade data capture scenarios. Equipped with a professional scanning engine and high-resolution sensor, it serves as essential equipment for efficient operations across warehousing, logistics, manufacturing, retail, and wholesale sectors.

Key Features

Dual-mode wireless communication (Bluetooth 4.0 and 433MHz)
Extended transmission range: 200m (433MHz) or 20m (Bluetooth)
High-resolution monochrome imaging CMOS sensor
Removable 2600mAh battery with over 8 hours continuous scanning
Rugged construction withstands 1.5m drops
Comprehensive 1D and 2D barcode symbology support

Technical Specifications

Scanning Performance
Image Sensor	Monochrome Imaging CMOS
Pixel Resolution	1056×1248
Field of View Angle	Horizontal 40°, Vertical 31°
Reading Precision	≥3mil
Reading Contrast	≥15%
Reading Angle	Tilt ±60°, Rotation ±360°, Skew ±60°
Wireless & Connectivity
Wireless Frequency Band	433MHz/Bluetooth 4.0 Dual Mode
Communication Distance	433MHz: 200m (open area); Bluetooth: 20m (open area)
Base Communication Interface	USB or RS232
Power & Battery
Battery Capacity	2600mAh (removable)
Charging Time	4-6 hours
Continuous Scanning Time	>8 hours (at 1 scan per second)
Storage Capacity	>5000 barcodes
Physical Specifications
Scanner Dimensions	211×76×100mm
Base Dimensions	262×101×66mm
Scanner Weight	400g
Base Weight	350g
Environmental Specifications
Operating Temperature	-10℃ to 50℃
Storage Temperature	-20℃ to 70℃
Relative Humidity	5% to 95% (no condensation)
Drop Resistance	Withstands 50 drops from 1.5m height

Supported Barcode Symbologies

2D Symbologies

Aztec Code, Han Xin Code, Data Matrix, MaxiCode, QR Code, Micro QR, MQR, Dot Code, Grid Matrix, Codablock A, Codablock F, PDF417, Micro PDF417

1D Symbologies

Codabar, Code11, Code128, ISBT128, Code32, Code39, TLC39, Code93/93i, BC412, UK Plessey, Anker Plessey, EAN-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E

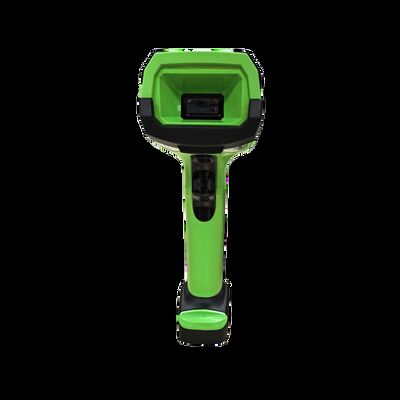

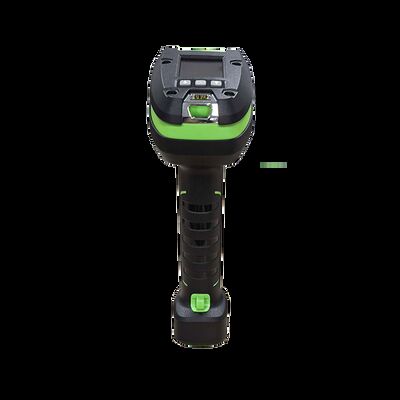

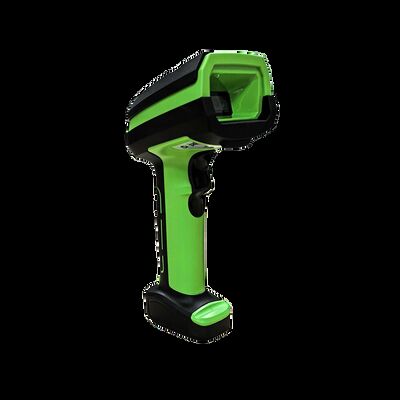

Product Images
