H200/203 Wireless Handheld Barcode Scanner with 120 Frames Per Second 1m/s Motion Tolerance and Blur Recognition for Seamless Integration

Brand Name:	SR
Model Number:	H200/H203
MOQ:	1pc
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 boxes/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Illumination Environment:

0~100000 Lux

Standby Current:

160mA

Operating Voltage:

DC5V±10%

Aim:

Gree Dot LED

Frame Rate:

120 F/S MAX

Movement Tolerance:

1m/s

Readable Contrast:

15%

Packaging Details:

Ctn

Highlight:

120 Frames Per Second Handheld Barcode Scanner

1m/s Motion Tolerance Wireless Barcode Scanner

Blur Recognition 2D Barcode Scanner

Product Description

H200/203 2D Wireless Barcode Scanner

High-performance wireless handheld barcode scanner featuring 1m/s motion scanning and advanced blur recognition technology for seamless integration in industrial environments.

Product Overview

The H200/203 wireless handheld barcode scanner delivers exceptional performance with a high frame rate of 120 frames per second and 1-meter/second dynamic scanning capability. Advanced algorithms enable instant recognition of blurred barcodes with zero delay and no missed scans. Fully compatible with both 1D and 2D barcodes, this scanner provides rapid and precise scanning for diverse retail, warehousing, and industrial applications, enabling real-time data synchronization to help businesses reduce costs and enhance operational efficiency.

Technical Specifications

Physical Parameters

Dimensions	169.0mm (W) * 78.3mm (D) * 59.4mm (H)
Weight	280g
Communication Interface	USB HID, USB COM, TTL

Environmental Parameters

Operating Temperature	-20℃ to 50℃ [-22℉ to 140℉]
Storage Temperature	-40℃ to 70℃ [-40℉ to 158℉]
Operating and Storage Humidity	Up to 93%RH, non-condensing at 60℃ [140℉]

Electrical Parameters

Illumination Environment	0~100000 lux
Operating Voltage	DC5V±10%
Operating Current	240mA
Standby Current	160mA

Performance Parameters

Image Sensor	Global shutter
Resolution	1280800 / 640480
Illumination	Red LED
Aiming	Green Dot
Frame Rate	120 frames/s max
Motion Tolerance	1m/s
Field of View (Horizontal/Vertical)	Horizontal 40.9°; Vertical 31.2°
Reading Angles (Tilt/Rotation/Skew)	Tilt ±70°; Rotation 360°; Skew ±55°
Readable Contrast	15%

Supported Barcode Symbologies

1D Symbologies

Codabar, Code11, Code128, ISBT128, Code32, Code39
ILC39, Code93/93i, BC412, UK Plessy, Anker Plessy
BW-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode
UPC-A, UPC-E, 2 to 5 (including ChinaPost and other 2 of 5 encodings)

2D Symbologies

AztecCode, HanXin, DataMatrix, MaxiCode, QR, Micro QR
rMQR, Dot Code, GridMatrix, Codablock, CodablockF
PDF417, Micro PDF417

Postal Symbologies

KoreaPost, ChinaPost, AustraliaPostal, Royal INFOMAIL
Japan Postal, KIX, PLANETCODE, POSTNET
BritainPostal, UPU, USPS 4STATE

Depth of Field Specifications

Barcode Type	Effective Reading Distance / Depth of Field
5mil Code39	60 - 160mm / 100mm
13mil EAN13	65 - 290mm / 225mm
6.7mil PDF417	60 - 145mm / 85mm
15mil QR	50 - 180mm / 130mm
20mil DM	55 - 180mm / 125mm

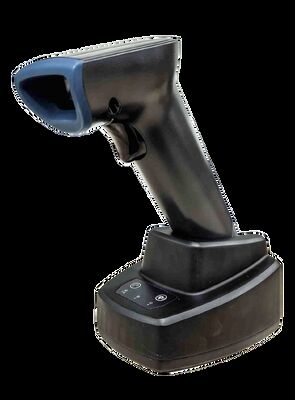

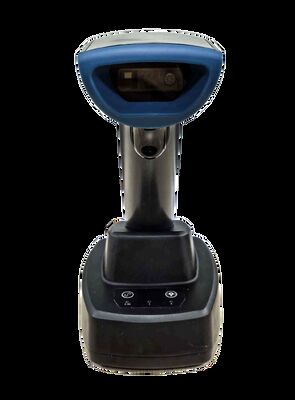

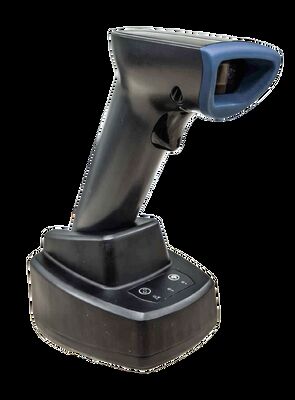

Product Images
