H200/203 Handheld Barcode Scanner with 120 FPS High Frame Rate 1m/s Motion Reading and 15% Low Contrast Adaptation

Name: H200/203 Handheld Barcode Scanner with 120 FPS High Frame Rate 1m/s Motion Reading and 15% Low Contrast Adaptation
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: H200/H203
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	H200/H203
MOQ:	1pc
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 boxes/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Resolution:

1280×800 / 640×480

Operating And Storage Humidity:

Up To 93%RH, Non-condensing At 60℃ [140℉]

Communication Interface:

USB HID, USB COM, TTL

Aim:

Gree Dot LED

Frame Rate:

120 F/S MAX

Movement Tolerance:

1m/s

Readable Contrast:

15%

Packaging Details:

Ctn

Highlight:

120 FPS High Frame Rate Handheld Barcode Scanner

1m/s Motion Reading Barcode Scanner

15% Low Contrast Adaptation Wireless Barcode Scanner

Product Description

H200/203 Handheld Barcode Scanner

High Frame Rate + Motion Reading + Low Contrast Adaptation

The H200/203 Wireless Handheld Barcode Scanner features 120FPS high frame rate and 1m/s motion scanning capability. Instantly recognizes blurred barcodes, eliminating lag and missed scans. Fully compatible with 1D and 2D barcodes. Powered by advanced recognition algorithms for exceptional speed and accuracy. Wireless connectivity enables seamless integration across retail, warehousing, and industrial settings. Provides effortless real-time data synchronization to reduce costs, boost efficiency, and enhance operational productivity.

Technical Specifications

Physical Parameters

Dimensions	169.0mm (W) * 78.3mm (D) * 59.4mm (H)
Weight	280g
Communication Interface	USB HID, USB COM, TTL

Environmental Parameters

Operating Temperature	-20℃ to 50℃ [-22℉ to 140℉]
Storage Temperature	-40℃ to 70℃ [-40℉ to 158℉]
Operating and Storage Humidity	Up to 93%RH, non-condensing at 60℃ [140℉]

Electrical Parameters

Illumination Environment	0~100000 lux
Operating Voltage	DC5V±10%
Operating Current	240mA
Standby Current	160mA

Performance Parameters

Image Sensor	Global shutter
Resolution	1280800 / 640480
Illumination	Red LED
Aiming	Green Dot
Frame Rate	120 frames/s max
Motion Tolerance	1m/s
Field of View (Horizontal/Vertical)	Horizontal 40.9°; Vertical 31.2°
Reading Angles (Tilt/Rotation/Skew)	Tilt ±70°; Rotation 360°; Skew ±55°
Readable Contrast	15%

Supported Barcode Symbologies

1D Symbologies

Codabar, Code11, Code128, ISBT128, Code32, Code39
ILC39, Code93/93i, BC412, UK Plessy, Anker Plessy
BW-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode
UPC-A, UPC-E, 2 to 5 (including ChinaPost and other 2 of 5 encodings)

2D Symbologies

AztecCode, HanXin, DataMatrix, MaxiCode, QR, Micro QR
rMQR, Dot Code, GridMatrix, Codablock, CodablockF
PDF417, Micro PDF417

Postal Symbologies

KoreaPost, ChinaPost, AustraliaPostal, Royal INFOMAIL
Japan Postal, KIX, PLANETCODE, POSTNET
BritainPostal, UPU, USPS 4STATE

Depth of Field Specifications

Barcode Type	Effective Reading Distance / Depth of Field
5mil Code39	60 - 160mm / 100mm
13mil EAN13	65 - 290mm / 225mm
6.7mil PDF417	60 - 145mm / 85mm
15mil QR	50 - 180mm / 130mm
20mil DM	55 - 180mm / 125mm

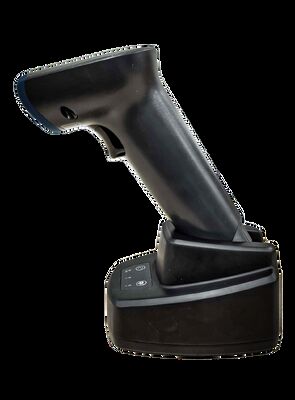

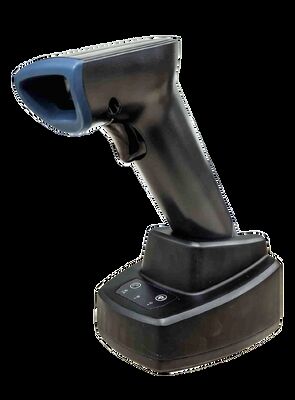

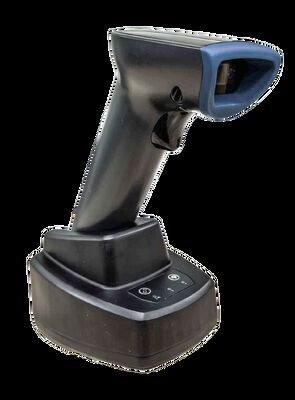

Product Images
