SC20-L Wired Laser Barcode Scanner with 0.127mm Minimum Resolution and 0℃-50℃ Operating Temperature for Precise Scanning

SC20-L Wired Laser Barcode Scanner with 0.127mm Minimum Resolution and 0℃-50℃ Operating Temperature for Precise Scanning

SC20-L Wired Laser Barcode Scanner with 0.127mm Minimum Resolution and 0℃-50℃ Operating Temperature for Precise Scanning

Brand Name: SR
Model Number: SC20-L
MOQ: 10PCS
Price: 13-20usd
Payment Terms: L/C,T/T
Supply Ability: 4000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Dimensions:
159mm*65.5mm*85mm (L*W*H)
Weight:
Approx. 150g (Excluding Packaging)
Sealing Rating:
IP52
Minimum Resolution:
0.127mm(5mil) @Code 39, PCS=90%
Operating Environment Temperature:
0℃-50℃
Storage Temperature:
-20℃~+70℃
Storage Humidity:
5%-95% Non-condensing
Ambient Lighting:
0-8,600Lux (Fluorescent) 0-100,000Lux (Sunlight) Input Voltage
Packaging Details:
corrugated paper box
Highlight:

0.127mm Minimum Resolution Laser Barcode Scanner

,

0℃-50℃ Operating Temperature Handheld Barcode Scanner

,

Precise Laser Technology Wired Barcode Scanner

Product Description
SC20-L Wired Laser Barcode Scanner for Office/Supermarket Use
The SC20-L Wired Laser Barcode Scanner is a high-performance handheld 1D scanning device equipped with precise laser technology. Its working principle is simple: it emits a red laser beam, filters out stray light, and projects it onto the sensor to generate an electrical signal. After the signal is amplified and decoded, it is converted into recognizable information and transmitted to the connected device.
Key Features
  • Durable ABS+PC construction
  • Effortless continuous scanning operation
  • Supports multiple languages and barcode types
  • Multiple scanning modes including automatic and proximity
  • Audible and visual scanning confirmation
Technical Specifications
Item Parameter
Model SC20-L
Scanning element type Laser
Scanning speed 100 times per second
Light source Laser
Scan mode Button-activated, proximity, automatic, continuous
Minimum resolution 0.127mm(5mil) @Code 39, PCS=90%
Operating temperature 0℃-50℃
Storage temperature -20℃~+70℃
Input voltage 5VDC±10%
Interface Support USB, USB-COM, RS-232 (Optional)
Dimensions 159mm*65.5mm*85mm (L*W*H)
Weight Approx. 150g (Excluding packaging)
Sealing rating IP52
Drop height 1.5m
Product Images

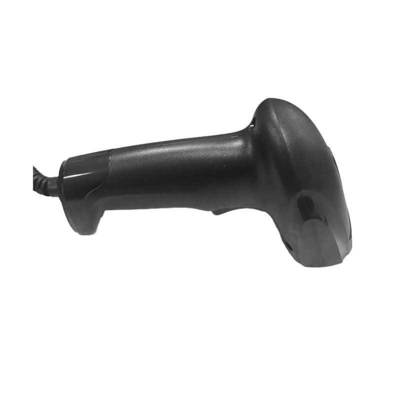

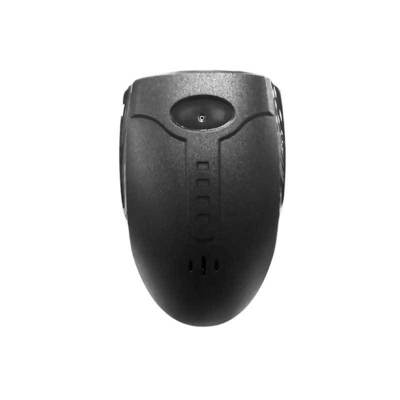

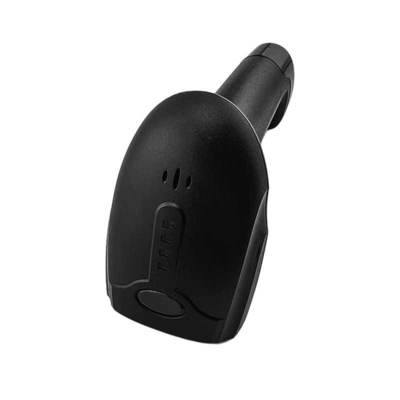

SC20-L Wired Laser Barcode Scanner with 0.127mm Minimum Resolution and 0℃-50℃ Operating Temperature for Precise Scanning 0
