SC20-L Wired Laser 1D Barcode Scanner with 100 Scans Per Second 0.127mm Resolution and IP52 Sealing Rating

SC20-L Wired Laser 1D Barcode Scanner with 100 Scans Per Second 0.127mm Resolution and IP52 Sealing Rating

SC20-L Wired Laser 1D Barcode Scanner with 100 Scans Per Second 0.127mm Resolution and IP52 Sealing Rating

Brand Name: SR
Model Number: SC20-L
MOQ: 10PCS
Price: 13-20usd
Payment Terms: L/C,T/T
Supply Ability: 4000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Scanning Element Type:
Laser
Scanning Speed:
100 Times Per Second
Light Source:
Laser
Minimum Resolution:
0.127mm(5mil) @Code 39, PCS=90%
Operating Environment Temperature:
0℃-50℃
Storage Temperature:
-20℃~+70℃
Storage Humidity:
5%-95% Non-condensing
Ambient Lighting:
0-8,600Lux (Fluorescent) 0-100,000Lux (Sunlight) Input Voltage
Packaging Details:
corrugated paper box
Highlight:

100 Scans Per Second Laser Barcode Scanner

,

0.127mm Resolution Handheld Barcode Scanner

,

IP52 Sealing Rating 1D Barcode Scanner

Product Description
SC20-L Wired Laser 1D Barcode Scanner
The SC20-L Wired Laser is a high-performance handheld 1D barcode scanner featuring precise laser scanning technology. A red laser beam is emitted, reflected, and filtered to eliminate stray light before striking a photodiode to generate an optoelectronic signal. This signal is amplified, shaped, and decoded into recognizable information for transmission to connected devices.
Key Features
  • Durable ABS+PC construction
  • Effortless continuous scanning operation
  • Supports multiple languages and barcode types
  • Multiple scanning modes including automatic and proximity
  • Audible and visual scanning confirmation
Technical Specifications
Item Parameter
Model SC20-L
Scanning element type Laser
Scanning speed 100 times per second
Light source Laser
Scan mode Button-activated, proximity, automatic, continuous
Minimum resolution 0.127mm(5mil) @Code 39, PCS=90%
Operating temperature 0℃-50℃
Storage temperature -20℃~+70℃
Input voltage 5VDC±10%
Interface Support USB, USB-COM, RS-232 (Optional)
Dimensions 159mm*65.5mm*85mm (L*W*H)
Weight Approx. 150g (Excluding packaging)
Sealing rating IP52
Drop height 1.5m
Product Images

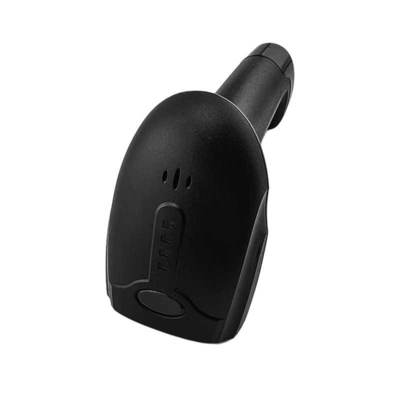

SC20-L Wired Laser 1D Barcode Scanner with 100 Scans Per Second 0.127mm Resolution and IP52 Sealing Rating 0
Front view of KC-08 scanner

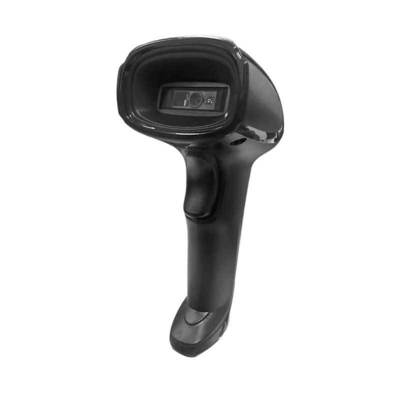

SC20-L Wired Laser 1D Barcode Scanner with 100 Scans Per Second 0.127mm Resolution and IP52 Sealing Rating 1
Scanner in operation
Manufacturing Quality

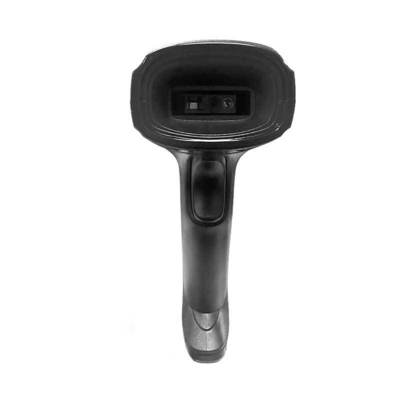

SC20-L Wired Laser 1D Barcode Scanner with 100 Scans Per Second 0.127mm Resolution and IP52 Sealing Rating 2
Our precision manufacturing facility
