Handheld Barcode Scanner
Created with Pixso.

H200/203 Handheld Barcode Scanner with 120 F/S MAX High Frame Rate 1m/s Movement Tolerance and 15% Readable Contrast

H200/203 Handheld Barcode Scanner with 120 F/S MAX High Frame Rate 1m/s Movement Tolerance and 15% Readable Contrast

H200/203 Handheld Barcode Scanner with 120 F/S MAX High Frame Rate 1m/s Movement Tolerance and 15% Readable Contrast

Brand Name: SR
Model Number: H200/H203
MOQ: 1pc
Price: 13-20usd
Payment Terms: L/C,T/T
Supply Ability: 4000 boxes/week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Illumination:
White LED
Aiming:
Green Dot
Illumination Environment:
0~100000 Lux
Aim:
Gree Dot LED
Frame Rate:
120 F/S MAX
Movement Tolerance:
1m/s
Readable Contrast:
15%
Packaging Details:
Ctn
Highlight:

120 F/S MAX Barcode Scanner

,

1m/s Movement Tolerance Handheld Barcode Scanner

,

15% Readable Contrast Barcode Reader

Product Description

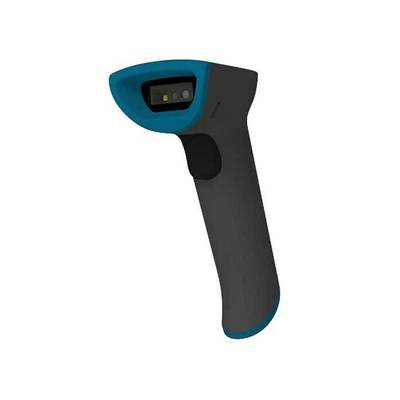

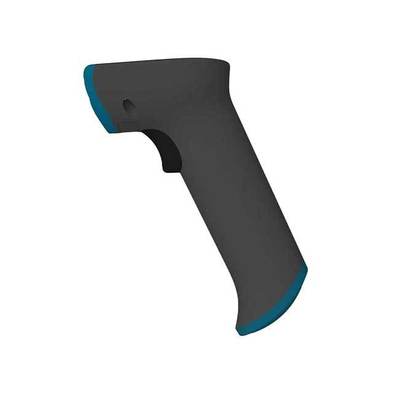

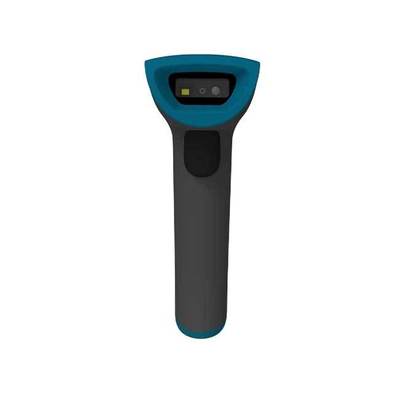

H200/203 Handheld Barcode Scanner
Supports 1D/2D Barcode Recognition | High Frame Rate | Accurate And Fast Scanning
Equipped with a barcode scanner capable of reading both linear and two-dimensional barcodes with rapid and accurate scanning. Features wireless connectivity to computers and mobile devices for efficient data collection, making it suitable for retail, warehousing and other scenarios. Offers flexibility and convenience.
Specifications
Physical Parameters
Dimensions 169.0mm (W) * 78.3mm (D) * 59.4mm (H)
Weight 280g
Communication Interface USB HID, USB COM, TTL
Environmental Parameters
Operating Temperature -20℃ to 50℃ [-22℉ to 140℉]
Storage Temperature -40℃ to 70℃ [-40℉ to 158℉]
Operating and Storage Humidity Up to 93%RH, non-condensing at 60℃ [140℉]
Electrical Parameters
Illumination Environment 0~100000 lux
Operating Voltage DC5V±10%
Operating Current 240mA
Standby Current 160mA
Performance Parameters
Image Sensor Global shutter
Resolution 1280800 / 640480
Illumination Red LED
Aiming Green Dot
Frame Rate 120 frames/s max
Motion Tolerance 1m/s
Field of View (Horizontal / Vertical) Horizontal 40.9°；Vertical 31.2°
Reading Angles (Tilt / Rotation / Skew) Tilt ±70°；Rotation 360°；Skew ±55°
Readable Contrast 15%
Supported Symbologies
1D Symbologies
Codabar, Code11, Code128, ISBT128, Code32, Code39, ILC39, Code93/93i, BC412, UK Plessy, Anker Plessy, BW-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E, 2 to 5 (including ChinaPost and other types of 2 of 5 encodings)
2D Symbologies
AztecCode, HanXin, DataMatrix, MaxiCode, QR, Micro QR, rMQR, Dot Code, GridMatrix, Codablock, CodablockF, PDF417, Micro PDF417
Postal Symbologies
KoreaPost, ChinaPost, AustraliaPostal, Royal INFOMAIL, Japan Postal, KIX, PLANETCODE, POSTNET, BritainPostal, UPU, USPS 4STATE
Depth of Field
Barcode Type Effective Reading Distance / Depth of Field
5mil Code39 60 - 160mm / 100mm
13mil EAN13 65 - 290mm / 225mm
6.7mil PDF417 60 - 145mm / 85mm
15mil QR 50 - 180mm / 130mm
20mil DM 55 - 180mm / 125mm
H200/203 Handheld Barcode Scanner with 120 F/S MAX High Frame Rate 1m/s Movement Tolerance and 15% Readable Contrast 0 H200/203 Handheld Barcode Scanner with 120 F/S MAX High Frame Rate 1m/s Movement Tolerance and 15% Readable Contrast 1 H200/203 Handheld Barcode Scanner with 120 F/S MAX High Frame Rate 1m/s Movement Tolerance and 15% Readable Contrast 2
