KC09 Barcode Reader with 500 Scans/Second Speed IP54 Rated and 1.5m Drop Height for Durable Scanning

KC09 Barcode Reader with 500 Scans/Second Speed IP54 Rated and 1.5m Drop Height for Durable Scanning

KC09 Barcode Reader with 500 Scans/Second Speed IP54 Rated and 1.5m Drop Height for Durable Scanning

Brand Name: SR
Model Number: KC09
MOQ: 10PCS
Price: 13-20usd
Payment Terms: L/C,T/T
Supply Ability: 4000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Material:
ABS+PC
Ingress Protection Rating:
IP52
Drop Height:
1.5m
Scanning Speed:
400 Times/second
Operating Temperature:
0°C-50°C
Storage Temperature:
-20°C~+70°C
Storage Humidity:
5%-95% Non-condensing
Input Voltage:
5VDC±10%
Packaging Details:
corrugated paper box
Highlight:

500 Scans/Second Speed Barcode Reader

,

IP54 Rated Handheld Barcode Scanner

,

1.5m Drop Height 2D Barcode Scanner

Product Description
KC09 Barcode Reader with 500 Scans/Second Speed IP54 Rated and CCD Sensor
The KC09 Barcode Reader delivers stable, efficient, and error-free capture of all 1D/2D barcodes with exceptional reading performance. Utilizing global shutter technology, it achieves ultra-fast decoding and high-precision scanning while effectively resisting ambient light interference.
Key Features
  • Ultra-fast scanning at 500 scans per second
  • Global shutter technology for precise decoding
  • IP54 rated for dust and splash protection
  • CMOS sensor with 300,000 pixels resolution
  • Versatile connectivity with USB, USB-COM, and RS-232 options
  • Lightweight design at just 120g
  • Comprehensive barcode support including all major 1D and 2D formats
Technical Specifications
Model KC-09
Scanning Sensor Type CMOS (Global Shutter)
Pixel Resolution 300,000 pixels
Light Source 620nm Visible Red LED
Scanning Modes Button Trigger, Continuous Scanning
Scanning Speed 400 times/second
Minimum Resolution 0.127mm (5mil) @Code 39, PCS=90%
Operating Temperature 0°C-50°C
Storage Temperature -20°C~+70°C
Input Voltage 5VDC±10%
Dimensions (L×W×H) 159mm × 65.5mm × 85mm
Weight 120g (product only), 180g (with packaging)
Ingress Protection IP52
Supported Interfaces USB, USB-COM, RS-232 (optional)
Supported Barcode Formats
1D Codes: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS
2D Codes: QR, Data Matrix (DM), PDF417 (including mobile phone screen codes)
Product Images
KC09 Barcode Reader with 500 Scans/Second Speed IP54 Rated and 1.5m Drop Height for Durable Scanning 0

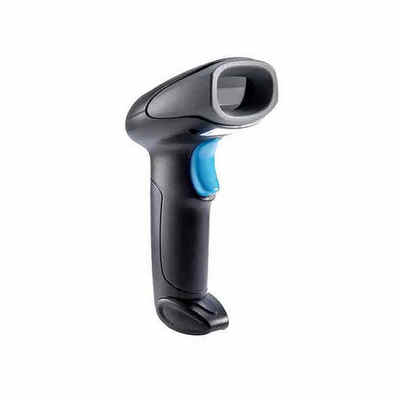

Front View
KC09 Barcode Reader with 500 Scans/Second Speed IP54 Rated and 1.5m Drop Height for Durable Scanning 1

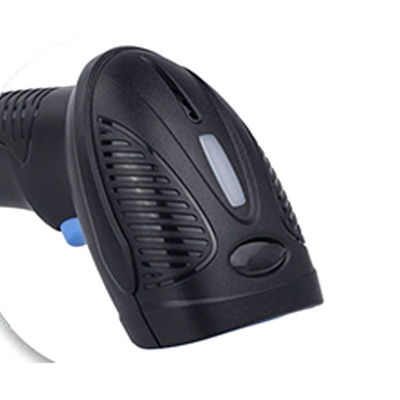

Side View
Manufacturer Information
KC09 Barcode Reader with 500 Scans/Second Speed IP54 Rated and 1.5m Drop Height for Durable Scanning 2
