SC20/SC20-BT Durable Handheld Barcode Scanner For Logistics Amp Warehousing With Long-Range Bluetooth And Robust 1D/2D Reading Capabilities

Name: SC20/SC20-BT Durable Handheld Barcode Scanner For Logistics Amp Warehousing With Long-Range Bluetooth And Robust 1D/2D Reading Capabilities
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: SC20/SC20-BT
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	SC20/SC20-BT
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Weight (Excluding Wiring):

165g

Appearance Dimensions (Length × Width × Height):

159mm × 65.5mm × 85mm

Charging Current:

450mA

Operating Temperature:

0°C ~ 50°C

Storage Temperature:

-40°C ~ 60°C

Prompt Method:

Buzzer And LED Indication

Packaging Details:

corrugated paper box

Product Description

SC20/SC20-BT Durable Handheld Barcode Scanner for Logistics amp Warehousing with Long-Range Bluetooth and Robust 1D/2D Reading Capabilities

Description:

This barcode scanner, specifically designed for logistics warehousing and courier scenarios, is equipped with Bluetooth Low Energy (BLE) technology to enable long-range transmission of 50–100 meters in open outdoor environments. It can quickly recognize various 1D and 2D barcodes without being affected by angle deviations, complete over 100,000 scans on a single charge, and features a compact, lightweight body for comfortable handheld operation. Additionally, it boasts full environmental adaptability, withstanding temperature fluctuations, humidity variations, and accidental drops, effectively meeting the needs of efficient operations.

Parameters:

Item Name	Specific Parameters
Readable Symbologies (1D)	CODE128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5 ITF14, MATRIX 25, Code39, Codabar, Code93, UCC/EAN-128, Code11, ISBN, Plessey, MSI_Plessey, CODE32, INDUSTRIAL25, STANDARD25
Readable Symbologies (2D)	PDF417, MicroPDF417, QR Code, Aztec, DataMatrix, Maxicode, MicroQRcode
Reading Precision	≥ 4mil
Resolution	300,000 global pixels
BLE Bluetooth Transmission Distance (Open Outdoor)	50 - 100 meters
2.4G Transmission Distance (Open Outdoor)	100 - 150 meters
Barcode Sensitivity - Tilt	±45°
Barcode Sensitivity - Rotation	±25°
Barcode Sensitivity - Deflection	±75°
Minimum Contrast	≥ 30%
Light Source	620nm visible red light - emitting diode
Image Sensor	CMOS
Number of Barcode Reads on a Single Full Charge	More than 100,000 times
Battery Capacity	1800mAh
Battery Charging Time	It takes up to 3.5 hours to fully charge
Operating Voltage	3.3V
Maximum Power Consumption	550mW
Current - Maximum Current	165mA
Current - Operating Current	145mA - 165mA
Current - Standby Current	95mA
Current - Sleep Current (Wireless Product)	＜10μA
Charging Current	450mA
Appearance Dimensions (Length × Width × Height)	159mm × 65.5mm × 85mm
Weight (Excluding Wiring)	165g
Prompt Method	Buzzer and LED indication
Storage Temperature	-40°C ~ 60°C
Operating Temperature	0°C ~ 50°C
Relative Humidity	0 ~ 95% (No condensation)
Drop Height (Free Fall)	1.5 meters
IP Protection Grade	IP52

Product Details:

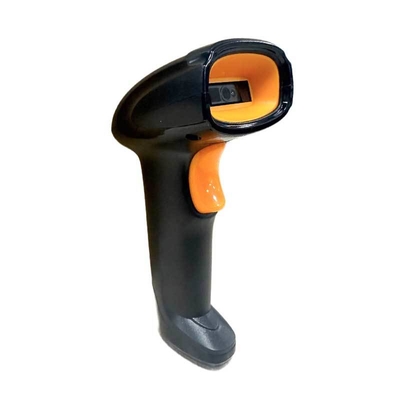

SC20/SC20-BT Durable Handheld Barcode Scanner For Logistics Amp Warehousing With Long-Range Bluetooth And Robust 1D/2D Reading Capabilities 0

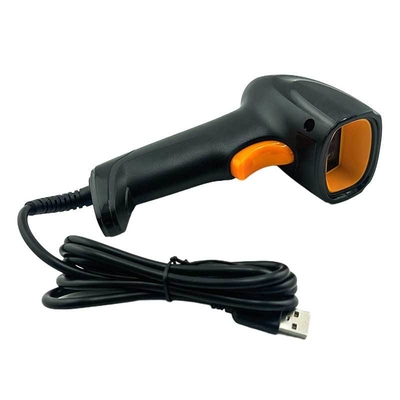

SC20/SC20-BT Durable Handheld Barcode Scanner For Logistics Amp Warehousing With Long-Range Bluetooth And Robust 1D/2D Reading Capabilities 1
