KC09 Precision Decoding Wired 2D Code Scanning Gun With Strong Reading Performance

Name: KC09 Precision Decoding Wired 2D Code Scanning Gun With Strong Reading Performance
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: KC09
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	KC09
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Scanning Sensor Type:

CMOS (Global Shutter)

Pixel:

300,000 Pixels

Light Source:

620nm Visible Red LED

Scanning Speed:

400 Times/second

Operating Temperature:

0°C-50°C

Storage Temperature:

-20°C~+70°C

Storage Humidity:

5%-95% Non-condensing

Input Voltage:

5VDC±10%

Packaging Details:

corrugated paper box

Product Description

KC09 Precision decoding wired 2D code scanning gun with strong reading performance

Description:

KC-09 wired 2D scanning gun is a high-performance handheld 2D barcode scanner from our company. It adopts global exposure, has fast decoding and high-precision reading ability, efficient resistance to ambient light interference, multi-functional scanning, fast scanning speed, strong reading performance and high accuracy. It is widely used in shopping malls, supermarkets, clothing retail and other industries.

Parameters:

Item	Specification
Model	KC-09
Scanning Sensor Type	CMOS (Global Shutter)
Pixel	300,000 pixels
Light Source	620nm Visible Red LED
Scanning Mode	Button Trigger, Continuous Scanning
Scanning Speed	400 times/second
Minimum Resolution	0.127mm (5mil) @Code 39, PCS=90%
Operating Temperature	0°C-50°C
Storage Temperature	-20°C~+70°C
Storage Humidity	5%-95% non-condensing
Ambient Illumination	0~8,600Lux (Fluorescent); 0~100,000Lux (Daylight)
Input Voltage	5VDC±10%
Operating Current	92mA～154mA
Depth of Field Angle	30° V x 48° H (Vertical × Horizontal)
Field of View Angle	48° (H) x 30° (V)
Supported Interfaces	USB, USB-COM, RS-232 (optional)
Dimensions (LWH)	159mm65.5mm85mm
Package Dimensions (LWH)	175mm×80mm×85mm
Product Weight	Approximately 120g (excluding packaging and accessories)
Gross Weight	Approximately 180g (including packaging, cables and accessories)
Cable Standard	Straight cable: 1.8m
Color	Black
Material	ABS+PC
Ingress Protection Rating	IP52
Drop Height	1.5m
Decoding Capability	1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS 2D: QR, Data Matrix (DM), PDF417, supports mobile phone screen code reading

Product Details:

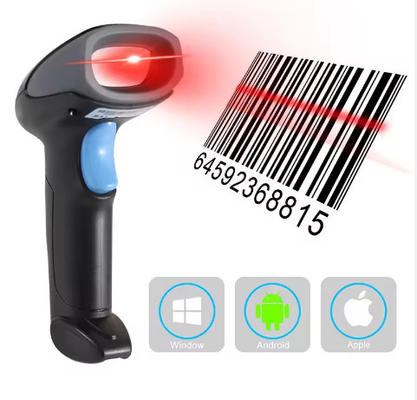

KC09 Precision Decoding Wired 2D Code Scanning Gun With Strong Reading Performance 0

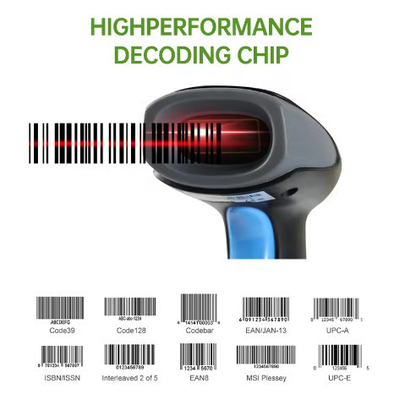

KC09 Precision Decoding Wired 2D Code Scanning Gun With Strong Reading Performance 1
