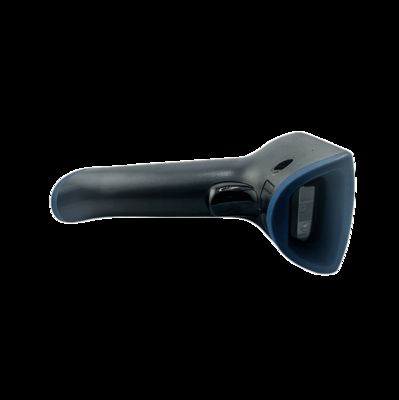

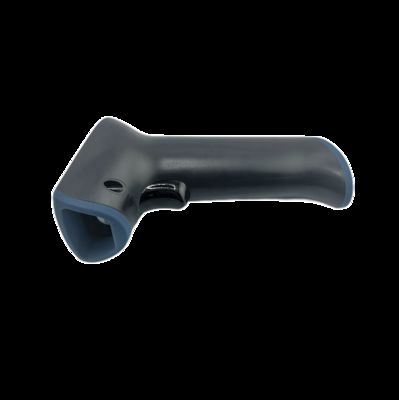

H200/H203 Portable Handheld Barcode Scanner with Wireless Connectivity for Fast and Accurate Data Collection

Physical Parameters

Dimensions

169.0mm (W) × 78.3mm (D) × 59.4mm (H)

Weight

280g

Communication Interface

USB HID, USB COM, TTL

Environmental Parameters

Operating Temperature

-20℃ to 50℃ [-22℉ to 140℉]

Storage Temperature

-40℃ to 70℃ [-40℉ to 158℉]

Operating and Storage Humidity

Up to 93%RH, non-condensing at 60℃ [140℉]

Electrical Parameters

Illumination Environment

0~100000 lux

Operating Voltage

DC5V±10%

Operating Current

240mA

Standby Current

160mA

Performance Parameters

Image Sensor

Global shutter

Resolution

1280800 / 640480

Illumination

Red LED

Aiming

Green Dot

Frame Rate

120 frames/s max

Motion Tolerance

1m/s

Field of View (Horizontal / Vertical)

Horizontal 40.9°；Vertical 31.2°

Reading Angles (Tilt / Rotation / Skew)

Tilt ±70°；Rotation 360°；Skew ±55°

Readable Contrast

15%

Supported Symbologies

1D Symbologies

Codabar, Code11, Code128, ISBT128, Code32, Code39, ILC39, Code93/93i, BC412, UK Plessy, Anker Plessy, BW-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E, 2 to 5 (including ChinaPost and other types of 2 of 5 encodings)

2D Symbologies

AztecCode, HanXin, DataMatrix, MaxiCode, QR, Micro QR, rMQR, Dot Code, GridMatrix, Codablock, CodablockF, PDF417, Micro PDF417

Postal Symbologies

KoreaPost, ChinaPost, AustraliaPostal, Royal INFOMAIL, Japan Postal, KIX, PLANETCODE, POSTNET, BritainPostal, UPU, USPS 4STATE

Depth of Field

5mil Code39 (Effective Reading Distance / Depth of Field)

60 - 160mm / 100mm

13mil EAN13 (Effective Reading Distance / Depth of Field)

65 - 290mm / 225mm

6.7mil PDF417 (Effective Reading Distance / Depth of Field)

60 - 145mm / 85mm

15mil QR (Effective Reading Distance / Depth of Field)

50 - 180mm / 130mm

20mil DM (Effective Reading Distance / Depth of Field)

55 - 180mm / 125mm
