H100/H103 Handheld Barcode Scanner and Versatile Data Collection Solution for Manufacturing and Warehousing

H100/H103 Handheld Barcode Scanner and Versatile Data Collection Solution for Manufacturing and Warehousing

Brand Name: SR
Model Number: H100/H103
MOQ: 10PCS
Price: 13-20usd
Payment Terms: L/C,T/T
Supply Ability: 4000 pcs/day
Detail Information
Place of Origin:
China
Barcode Resolution:
Min. 3mil
FOV:
57.6°(O)/46.6°(H)/36.8°(V)
Barcode Contrast:
≥25% Print Contrast
I/O Interfaces:
USB/RS232/Button Trigger
Sensor Resolution:
640×480/1280×800
Aiming:
LED/Laser
Packaging Details:
corrugated paper box
Product Description

H100/H103 Handheld Barcode Scanner and Versatile Data Collection Solution for Manufacturing and Warehousing


Description:

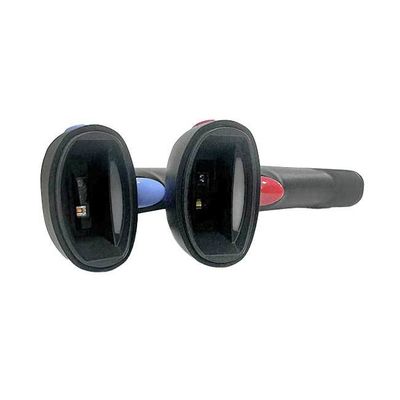

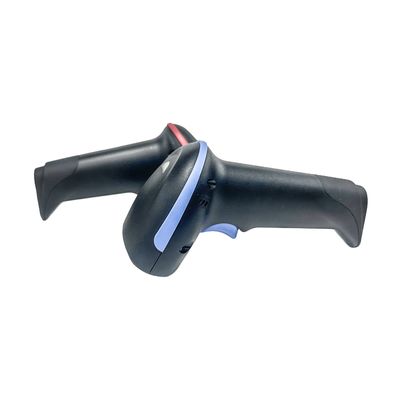

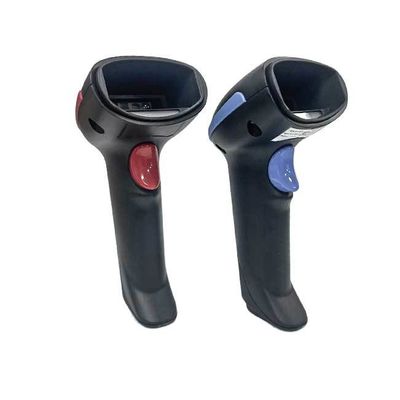

The H100/H103 Handheld Scanner Gun is designed for fast and accurate data collection, easily reading a wide range of long, broken, and large 2D barcodes. With its comfortable, lightweight, and rugged design, IP42 water and dust resistance, 1.2-meter drop resistance, and up to 3 million keystrokes, the H103 Handheld Scanner is your reliable and efficient data collection partner.


Parameters:


Primary Category Secondary Category / Parameter Details
Physical Parameters Dimension: 166x73×83mm
Weight: 105g
Electrical Parameters ESD: ±8KV (Air)/±4KV (Contact)
Input Voltage:
5V
I/O Interfaces: USB/RS232/Button Trigger
Performance Parameters Sensor Resolution: 640×480/1280×800
Illumination: White Lighting
Aiming: LED/Laser
Barcode Resolution: Min. 3mil
FOV: 57.6°(O)/46.6°(H)/36.8°(V)
Barcode Contrast: ≥25% Print Contrast
Scan Angles: Tilt ±60°/Rotation 360°/Skew ±60°
Reading Indicator: LED Light
Reading Range 13mil EAN13: 50-230mm
15mil QR Code: 30-130mm
Environmental Parameters Drop Test: 1.2m Steel Plate Drop/6,000×10cm Micro Drops
Drum Test: 300×0.5m Tumbles
Protection Level: IP42
Key Life: 3,000,000 Cycles
Ambient Light: 0-100,000lux
Humidity: 5%-95%
Temperature: Operating -20~50℃/Storage -40~70℃
Decoding Capability 2D Codes: UCC Composite/Aztec (8 Types Total)
1D Codes: EAN/UPC/GS1 DataBar (16 Types Total)
Postal Codes: Australian Post/British Post (10 Types Total)
Stacked Codes: EAN/JAN Composites/GS1 DataBar (9 Types Total)
