HE200BT Dual-Mode Wireless Barcode Scanner with High-Resolution CMOS Sensor, 1.5m Drop Resistance, and Industrial-Grade Durability

Name: HE200BT Dual-Mode Wireless Barcode Scanner with High-Resolution CMOS Sensor, 1.5m Drop Resistance, and Industrial-Grade Durability
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: HE200BT
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	HE200BT
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Battery:

2600mAh; Removable Battery

LCD Display (Optional):

Barcode Content Display, Battery Level Display, Basic Configuration, Etc.

Base Communication Interface:

USB Or RS232

Storage Temperature:

-20℃~70℃

Operating Temperature:

-10℃~50℃

Standby Current:

180mA@5V

Operating Current:

320mA@5V

Operating Voltage:

DC5V±10%

Charging Time:

4~6 Hours

Continuous Scanning Time:

>8 Hours (at 1 Scan Per Second)

Storage Capacity (Storage Mode):

>5000 Barcodes

Packaging Details:

corrugated paper box

Highlight:

High-Resolution CMOS Sensor Wireless Barcode Scanner

1.5m Drop Resistance Handheld Barcode Scanner

Industrial-Grade Durability Dual-Mode Barcode Scanner

Product Description

HE200BT Dual-Mode Wireless Barcode Scanner

Professional-grade wireless barcode scanner featuring high-resolution CMOS sensor technology, industrial-grade durability with 1.5m drop resistance, and dual-mode wireless connectivity for maximum flexibility.

Key Features

Dual-mode wireless communication (Bluetooth 4.0 and 433MHz)
Extended transmission range: 200m (433MHz) or 20m (Bluetooth)
High-resolution monochrome imaging CMOS sensor
Removable 2600mAh battery with over 8 hours continuous scanning
Rugged construction withstands 1.5m drops
Comprehensive 1D and 2D barcode symbology support

Technical Specifications

Scanning Performance

Image Sensor	Monochrome Imaging CMOS
Pixel Resolution	1056 × 1248
Shutter	Global Exposure
Illumination	White LED (Red/Blue LED optional)
Aiming	Red Line LED
Field of View Angle	Horizontal 40°, Vertical 31°
Reading Precision	≥3mil
Reading Contrast	≥15%
Reading Angle	Tilt ±60°, Rotation ±360°, Skew ±60°

Supported Symbologies

2D Barcodes	Aztec Code, Han Xin Code, Data Matrix, MaxiCode, QR Code, Micro QR, MQR, Dot Code, Grid Matrix, Codablock A, Codablock F, PDF417, Micro PDF417
1D Barcodes	Codabar, Code11, Code128, ISBT128, Code32, Code39, TLC39, Code93/93i, BC412, UK Plessey, Anker Plessey, EAN-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E

Mechanical & Electrical Performance

Wireless Frequency Band	433MHz/Bluetooth 4.0 Dual Mode
Wireless Communication Distance	433MHz: 200m in open area; Bluetooth: 20m in open area
LCD Display (Optional)	Barcode content display, battery level display, basic configuration
Battery	2600mAh removable battery
Charging Time	4-6 hours
Continuous Scanning Time	>8 hours (at 1 scan per second)
Storage Capacity	>5000 barcodes
Base Communication Interface	USB or RS232
Prompt Method	LCD display, LED (non-LCD version), buzzer, vibration
Dimensions	Scanner: 211×76×100mm; Base: 262×101×66mm
Weight	Scanner: 400g; Base: 350g
Operating Voltage	DC5V±10%
Operating Current	320mA@5V
Standby Current	180mA@5V

Environmental Parameters

Operating Temperature	-10℃ to 50℃
Storage Temperature	-20℃ to 70℃
Relative Humidity	5% to 95% (no condensation)
Drop Resistance	Withstands 50 drops from 1.5m height in air
Ambient Illumination	0 to 100,000 LUX

* Performance specifications may vary based on barcode quality and environmental conditions

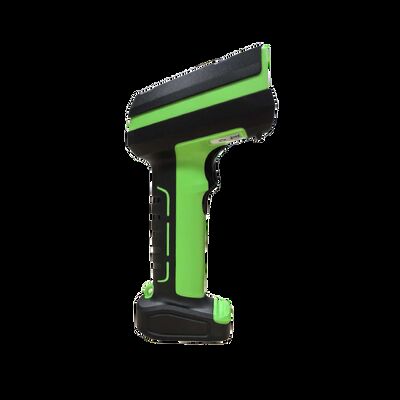

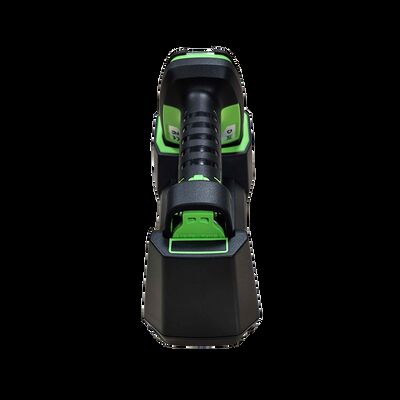

Product Images

We are a leading provider of professional barcode scanning solutions with extensive industrial expertise and commitment to quality.
