E200BT Dual-Mode Wireless Barcode Scanner with High-Resolution CMOS Sensor and 1.5m Drop Resistance for Industrial Use

Name: E200BT Dual-Mode Wireless Barcode Scanner with High-Resolution CMOS Sensor and 1.5m Drop Resistance for Industrial Use
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: HE200BT
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	HE200BT
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Illumination:

White LED (Red/Blue LED Optional)

Aiming:

Red Line LED

Wireless Frequency Band:

433MHz/Bluetooth 4.0 Dual Mode

Storage Temperature:

-20℃~70℃

Operating Temperature:

-10℃~50℃

Standby Current:

180mA@5V

Operating Current:

320mA@5V

Operating Voltage:

DC5V±10%

Charging Time:

4~6 Hours

Continuous Scanning Time:

>8 Hours (at 1 Scan Per Second)

Storage Capacity (Storage Mode):

>5000 Barcodes

Packaging Details:

corrugated paper box

Highlight:

Dual-Mode Wireless Communication Barcode Scanner

High-Resolution CMOS Sensor Barcode Scanner

1.5m Drop Resistance Industrial Barcode Scanner

Product Description

E200BT Wireless Barcode Scanner Dual-Mode

Industrial 1.5m Drop Resistance High-Resolution CMOS

The HE200BT Rugged Dual-Mode Wireless Barcode Scanner is engineered for the most demanding industrial data collection environments. Featuring advanced high-resolution sensor technology, this scanner delivers exceptional precision and speed for barcode identification across warehousing, logistics, and manufacturing applications.

Key Features

Dual-mode wireless communication (Bluetooth 4.0 and 433MHz)
Extended transmission range: 200m (433MHz) or 20m (Bluetooth)
High-resolution monochrome imaging CMOS sensor
Removable 2600mAh battery with over 8 hours continuous scanning
Rugged construction withstands 1.5m drops
Comprehensive 1D and 2D barcode symbology support

Technical Specifications

Scanning Performance

Image Sensor	Monochrome Imaging CMOS
Pixel	1056*1248
Shutter	Global Exposure
Illumination	White LED (Red/Blue LED optional)
Aiming	Red Line LED
Field of View Angle	Horizontal 40°, Vertical 31°
Supported Symbologies (2D)	Aztec Code, Han Xin Code, Data Matrix, MaxiCode, QR Code, Micro QR, MQR, Dot Code, Grid Matrix, Codablock A, Codablock F, PDF417, Micro PDF417
Supported Symbologies (1D)	Codabar, Code11, Code128, ISBT128, Code32, Code39, TLC39, Code93/93i, BC412, UK Plessey, Anker Plessey, EAN-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E
Typical Reading Depth*	HD: 3mil Code128 80-150mm; 5mil Code128 50-180mm; 5mil Code39 55-175mm; 10mil Code128 40-190mm; 13mil EAN13 40-195mm; 13mil UPC-A 40-200mm; 5.9mil DM/QR 60-120mm; 10mil DM/QR 50-175mm; 20mil DM/QR 40-260mm
Reading Precision*	≥3mil
Reading Contrast*	≥15%
Reading Angle*	Tilt ±60°, Rotation ±360°, Skew ±60°

Mechanical/Electrical Performance

Wireless Frequency Band	433MHz/Bluetooth 4.0 Dual Mode
Wireless Communication Distance	433MHz: 200m in open area; Bluetooth: 20m in open area
LCD Display (Optional)	Barcode content display, battery level display, basic configuration, etc.
Battery	2600mAh; Removable battery
Charging Time	4~6 hours
Continuous Scanning Time	>8 hours (at 1 scan per second)
Storage Capacity (Storage Mode)	>5000 barcodes
Base Communication Interface	USB or RS232
Prompt Method	LCD display, LED (non-LCD version), buzzer, vibration
Dimension	Scanner: 21176100mm; Base: 26210166mm
Weight	Scanner: 400g; Base: 350g
Operating Voltage	DC5V±10%
Operating Current	320mA@5V
Standby Current	180mA@5V

Environmental Parameters

Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~70℃
Relative Humidity	5%~95% (no condensation)
Drop Resistance	Withstands 50 drops from 1.5m height in air
Ambient Illumination	0~100000LUX

* Performance specifications may vary based on barcode quality and environmental conditions

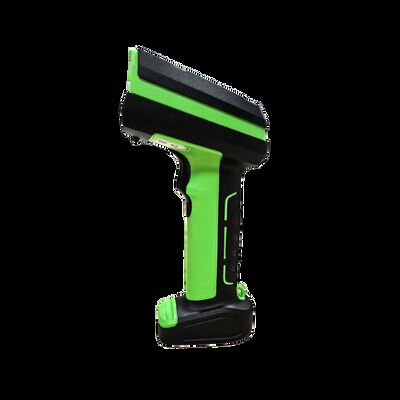

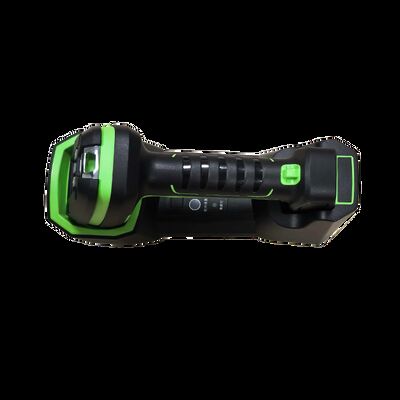

Product Images
