Desktop Barcode Scanner
Created with Pixso.

SR9000 Fixed 2D Scanner with 640×480 High-definition Pixel for Precise Recognition and Red Light Scanning

SR9000 Fixed 2D Scanner with 640×480 High-definition Pixel for Precise Recognition and Red Light Scanning

SR9000 Fixed 2D Scanner with 640×480 High-definition Pixel for Precise Recognition and Red Light Scanning

Brand Name: SR
Model Number: SR9000
Price: 40usd
Detail Information
Product Description
Detail Information
Place of Origin:
China
Color:
Black / White
Ingress Protection:
IP54
Drop Height:
1.5m
Scan Mode:
Omnidirectional Inductive Trigger Scanning / Continuous Scanning
Minimum Resolution:
0.127mm (5mil) @Code 39, PCS=90%
Scan Speed:
400 Scans/second
Operating Temperature:
0°C-50°C
Highlight:

640×480 High-definition Pixel Fixed 2D Scanner

,

Precise Recognition Barcode Reader

,

Red Light Desktop Barcode Scanner

Product Description
Precise Recognition With Red Light: SR9000 Fixed 2D Scanner
The SR9000 Fixed 2D Barcode Scanner features a 640×480 high-definition pixel resolution, boasting both tiny barcode recognition and long-distance reading capabilities. With an optimized image enhancement algorithm, this scanner maximizes recognition accuracy in scenarios involving complex barcodes (such as smudged or wrinkled ones).
Key Features
  • Global Exposure Engine for superior performance
  • Faster response times for increased productivity
  • Multi-language support for international use
  • High-brightness LED fill light for low-light operation
Technical Specifications
Item Specification
Model SR9000
Scanning Mode CMOS (Global Shutter)
Pixel 640*480
Light Source 617nm Red LED
Scan Mode Omnidirectional Inductive Trigger Scanning / Continuous Scanning
Minimum Resolution 0.127mm (5mil) @Code 39, PCS=90%
Scan Speed 400 scans/second
Operating Temperature 0°C-50°C
Storage Temperature -20°C~+70°C
Storage Humidity 5%-95% RH, Non-condensing
Ambient Illumination 0~8,600Lux (Fluorescent); 0~100,000Lux (Daylight)
Input Voltage 5VDC±10%
Operating Current 175mA Typ.
Depth of Field Angle 30° V x 48° H (Vertical x Horizontal)
Field of View 48° (H) x 30° (V)
Interface Support USB, USB-COM, RS-232 (Optional)
Product Dimensions 120mm*70mm*160mm (L*W*H)
Package Dimensions 175mm*130mm*115mm (L*W*H)
Product Weight Approx. 300g (Excluding package and accessories)
Gross Weight Approx. 450g (Including package, cables and accessories)
Cable Standard Straight Cable: 1.8m
Color Black / White
Material ABS+PC
Ingress Protection IP54
Drop Height 1.5m
Decoding Capability 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS；2D: QR, Data Matrix (DM), PDF417, Mobile Screen Code Scanning Supported
Applications
The SR9000 fixed-platform scanner is ideal for retail environments including supermarkets, department stores, and clothing retailers, as well as warehouses, libraries, and offices requiring fast, accurate barcode reading.
Product Images
SR9000 Fixed 2D Scanner with 640×480 High-definition Pixel for Precise Recognition and Red Light Scanning 0
SR9000 High-Speed Fixed 2D Scanner front view
SR9000 Fixed 2D Scanner with 640×480 High-definition Pixel for Precise Recognition and Red Light Scanning 1

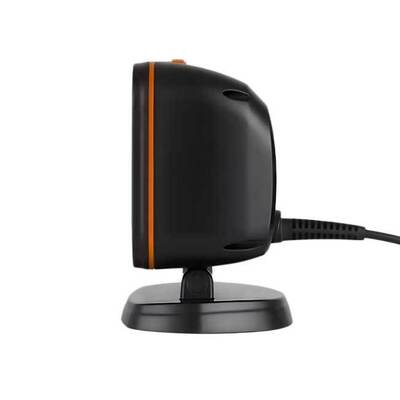

SR9000 High-Speed Fixed 2D Scanner side view
