High-performance SR9000 Fixed-mount 2D Barcode Scanner with 400 scans/second, 0.127mm Minimum Resolution, and 617nm Red LED

Name: High-performance SR9000 Fixed-mount 2D Barcode Scanner with 400 scans/second, 0.127mm Minimum Resolution, and 617nm Red LED
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: SR9000
Price: 40 USD
Availability: InStock

Brand Name:	SR
Model Number:	SR9000
Price:	40usd

Detail Information

Product Description

Detail Information

Place of Origin:

China

Scanning Mode:

CMOS (Global Shutter)

Pixel:

640*480

Light Source:

617nm Red LED

Scan Mode:

Omnidirectional Inductive Trigger Scanning / Continuous Scanning

Minimum Resolution:

0.127mm (5mil) @Code 39, PCS=90%

Scan Speed:

400 Scans/second

Operating Temperature:

0°C-50°C

Highlight:

400 scans/second Desktop Barcode Scanner

0.127mm Minimum Resolution Fixed-mount 2D Barcode Scanner

617nm Red LED SR9000 Barcode Scanner

Product Description

High-performance SR9000 Fixed-platform Scanner

Ultra-fast Decoding + High Precision

The SR9000 is a high-performance fixed-mount 2D barcode scanner featuring global shutter technology for rapid decoding and high-precision reading. Designed with robust resistance to ambient light interference, it delivers exceptional scanning performance for retail and commercial applications.

Key Features

Global Exposure Engine for superior performance
Faster response times for increased productivity
Multi-language support for international use
High-brightness LED fill light for low-light operation

Technical Specifications

Item	Specification
Model	SR9000
Scanning Mode	CMOS (Global Shutter)
Pixel	640*480
Light Source	617nm Red LED
Scan Mode	Omnidirectional Inductive Trigger Scanning / Continuous Scanning
Minimum Resolution	0.127mm (5mil) @Code 39, PCS=90%
Scan Speed	400 scans/second
Operating Temperature	0°C-50°C
Storage Temperature	-20°C~+70°C
Storage Humidity	5%-95% RH, Non-condensing
Ambient Illumination	0~8,600Lux (Fluorescent); 0~100,000Lux (Daylight)
Input Voltage	5VDC±10%
Operating Current	175mA Typ.
Depth of Field Angle	30° V x 48° H (Vertical x Horizontal)
Field of View	48° (H) x 30° (V)
Interface Support	USB, USB-COM, RS-232 (Optional)
Product Dimensions	120mm70mm160mm (LWH)
Package Dimensions	175mm130mm115mm (LWH)
Product Weight	Approx. 300g (Excluding package and accessories)
Gross Weight	Approx. 450g (Including package, cables and accessories)
Cable Standard	Straight Cable: 1.8m
Color	Black / White
Material	ABS+PC
Ingress Protection	IP54
Drop Height	1.5m
Decoding Capability	1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS；2D: QR, Data Matrix (DM), PDF417, Mobile Screen Code Scanning Supported

Applications

The SR9000 fixed-platform scanner is ideal for retail environments including supermarkets, department stores, and clothing retailers, as well as warehouses, libraries, and offices requiring fast, accurate barcode reading.

Product Images

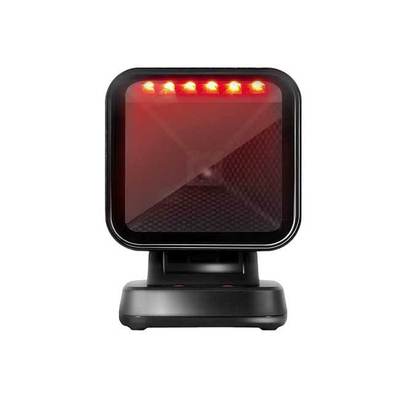

High-performance SR9000 Fixed-mount 2D Barcode Scanner with 400 scans/second, 0.127mm Minimum Resolution, and 617nm Red LED 0

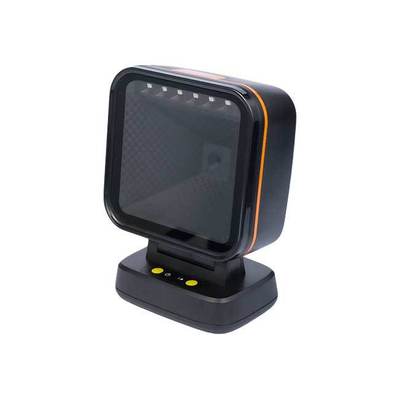

High-performance SR9000 Fixed-mount 2D Barcode Scanner with 400 scans/second, 0.127mm Minimum Resolution, and 617nm Red LED 1

About Us

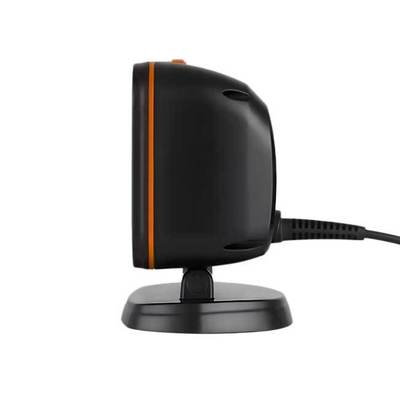

High-performance SR9000 Fixed-mount 2D Barcode Scanner with 400 scans/second, 0.127mm Minimum Resolution, and 617nm Red LED 2
