SC20/SC20-BT Bluetooth 1D/2D Wired/Wireless Barcode Scanner Logistics & Warehousing Receiving & Shipping Scanner Handheld Gun-Style Scanner

Name: SC20/SC20-BT Bluetooth 1D/2D Wired/Wireless Barcode Scanner Logistics & Warehousing Receiving & Shipping Scanner Handheld Gun-Style Scanner
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: SC20/SC20-BT
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	SC20/SC20-BT
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

IP Protection Grade:

IP52

Drop Height (Free Fall):

1.5 Meters

Relative Humidity:

0 ~ 95% (No Condensation)

Operating Temperature:

0°C ~ 50°C

Storage Temperature:

-40°C ~ 60°C

Prompt Method:

Buzzer And LED Indication

Packaging Details:

corrugated paper box

Product Description

SC20/SC20-BT Bluetooth 1D/2D Wired/Wireless Barcode Scanner Logistics & Warehousing Receiving & Shipping Scanner Handheld Gun-Style Scanner

Description:

This barcode scanner boasts long-range transmission, with BLE Bluetooth reaching up to 50–100 meters outdoors in open spaces. It offers robust reading capabilities, swiftly recognizing various 1D and 2D barcodes without being affected by angle deviations. Featuring extended battery life, it can scan over 100,000 barcodes on a single charge. Compact and lightweight, it provides comfortable handheld operation. Highly adaptable to diverse environments, it withstands varying temperatures, humidity levels, and drops, making it suitable for logistics warehousing and courier scanning.

Parameters:

Item Name	Specific Parameters
Readable Symbologies (1D)	CODE128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5 ITF14, MATRIX 25, Code39, Codabar, Code93, UCC/EAN-128, Code11, ISBN, Plessey, MSI_Plessey, CODE32, INDUSTRIAL25, STANDARD25
Readable Symbologies (2D)	PDF417, MicroPDF417, QR Code, Aztec, DataMatrix, Maxicode, MicroQRcode
Reading Precision	≥ 4mil
Resolution	300,000 global pixels
BLE Bluetooth Transmission Distance (Open Outdoor)	50 - 100 meters
2.4G Transmission Distance (Open Outdoor)	100 - 150 meters
Barcode Sensitivity - Tilt	±45°
Barcode Sensitivity - Rotation	±25°
Barcode Sensitivity - Deflection	±75°
Minimum Contrast	≥ 30%
Light Source	620nm visible red light - emitting diode
Image Sensor	CMOS
Number of Barcode Reads on a Single Full Charge	More than 100,000 times
Battery Capacity	1800mAh
Battery Charging Time	It takes up to 3.5 hours to fully charge
Operating Voltage	3.3V
Maximum Power Consumption	550mW
Current - Maximum Current	165mA
Current - Operating Current	145mA - 165mA
Current - Standby Current	95mA
Current - Sleep Current (Wireless Product)	＜10μA
Charging Current	450mA
Appearance Dimensions (Length × Width × Height)	159mm × 65.5mm × 85mm
Weight (Excluding Wiring)	165g
Prompt Method	Buzzer and LED indication
Storage Temperature	-40°C ~ 60°C
Operating Temperature	0°C ~ 50°C
Relative Humidity	0 ~ 95% (No condensation)
Drop Height (Free Fall)	1.5 meters
IP Protection Grade	IP52

Product Details:

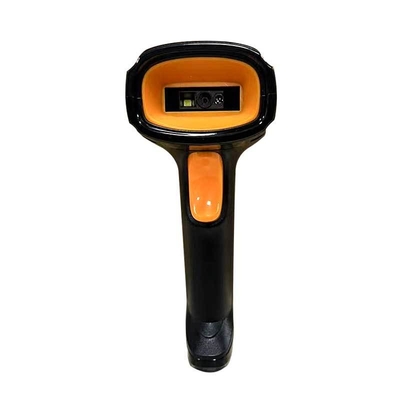

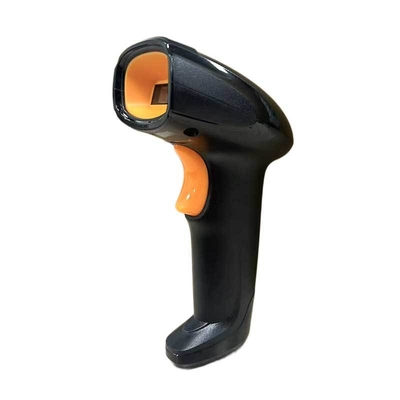

SC20/SC20-BT Bluetooth 1D/2D Wired/Wireless Barcode Scanner Logistics & Warehousing Receiving & Shipping Scanner Handheld Gun-Style Scanner 0

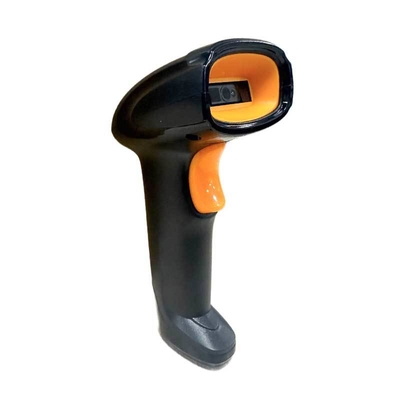

SC20/SC20-BT Bluetooth 1D/2D Wired/Wireless Barcode Scanner Logistics & Warehousing Receiving & Shipping Scanner Handheld Gun-Style Scanner 1
