Handheld Barcode Scanner
Created with Pixso.

H100/H103 Handheld Barcode Scanner 5V USB/RS232 105g

H100/H103 Handheld Barcode Scanner 5V USB/RS232 105g

H100/H103 Handheld Barcode Scanner 5V USB/RS232 105g

Brand Name: SR
Model Number: H100/H103
MOQ: 10PCS
Price: 13-20usd
Payment Terms: L/C,T/T
Supply Ability: 4000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Dimensions:
166x73×83mm
Weight:
105g
Input Voltage:
5V
I/O Interfaces:
USB/RS232/Button Trigger
Sensor Resolution:
640×480/1280×800
Aiming:
LED/Laser
Packaging Details:
corrugated paper box
Highlight:

H100 handheld barcode scanner for retail

,

H103 barcode scanner for logistics

,

handheld scanner gun with warranty

Product Description
H100/H103 Handheld Scanner Gun
Manufacturing, Warehousing, Logistics, Finance, Retail, Healthcare & General Purpose
The H100/H103 handheld scanning guns are engineered for efficient data collection across multiple industries. Featuring a low-power solution with strong performance and outstanding cost efficiency, these scanners accurately read long barcodes, wrinkled barcodes, large 2D codes, and screen barcodes. The ergonomic design is compact, lightweight, and comfortable to hold.
Key Features
  • IP42 protection level withstands 1.2-meter drops
  • Keypad rated for 3 million cycles
  • Durable and reliable construction
  • Enhances scanning efficiency and quality
Technical Specifications
Category Specifications
Physical Parameters
Dimension: 166*73*83mm
Weight: 105g
Electrical Parameters
ESD: ±8KV (Air)/±4KV (Contact)
Input Voltage: 5V
I/O Interfaces: USB/RS232/Button Trigger
Performance Parameters
Sensor Resolution: 640*480/1280*800
Illumination: White Lighting
Aiming: LED/Laser
Barcode Resolution: Min. 3mil
FOV: 57.6°(O)/46.6°(H)/36.8°(V)
Barcode Contrast: ≥25% Print Contrast
Scan Angles: Tilt ±60°/Rotation 360°/Skew ±60°
Reading Indicator: LED Light
Reading Range
13mil EAN13: 50-230mm
15mil QR Code: 30-130mm
Environmental Parameters
Drop Test: 1.2m Steel Plate Drop/6,000*10cm Micro Drops
Drum Test: 300*0.5m Tumbles
Protection Level: IP42
Key Life: 3,000,000 Cycles
Ambient Light: 0-100,000lux
Humidity: 5%-95%
Temperature: Operating -20~50℃/Storage -40~70℃
Decoding Capability
2D Codes: UCC Composite/Aztec (8 Types Total)
1D Codes: EAN/UPC/GS1 DataBar (16 Types Total)
Postal Codes: Australian Post/British Post (10 Types Total)
Stacked Codes: EAN/JAN Composites/GS1 DataBar (9 Types Total)
Product Images

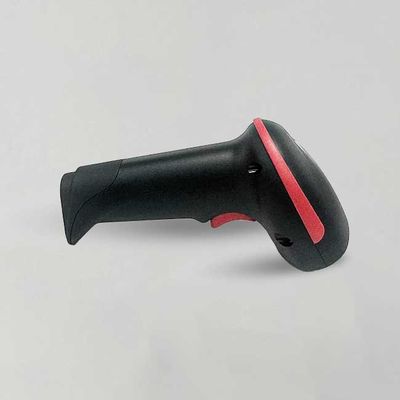

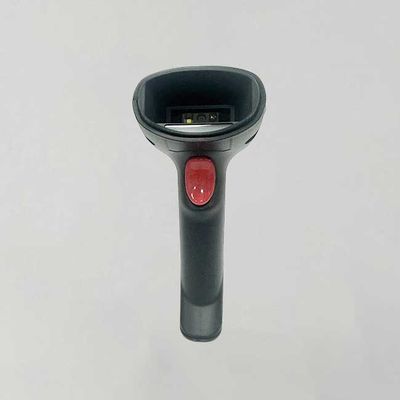

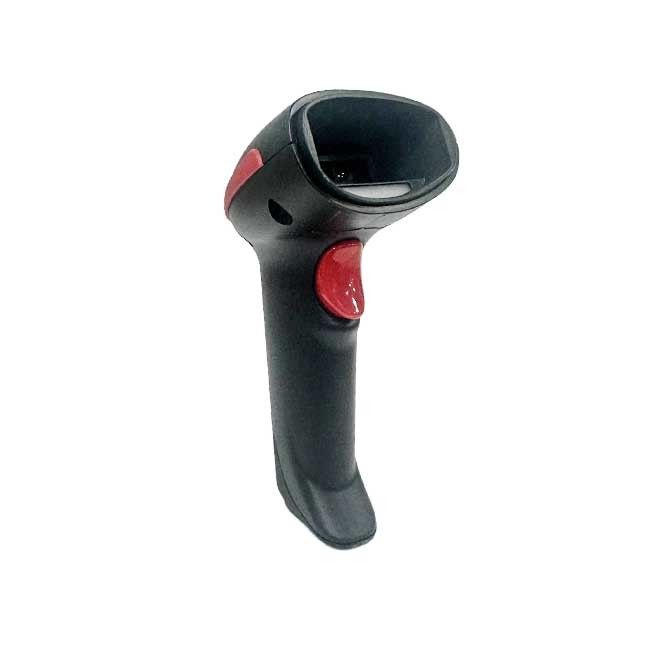

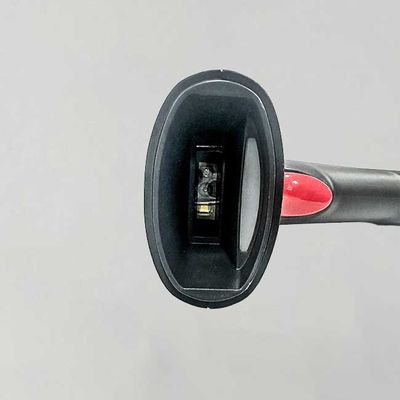

H100/H103 Handheld Barcode Scanner 5V USB/RS232 105g 0 H100/H103 Handheld Barcode Scanner 5V USB/RS232 105g 1
