FR100 Compact & Lightweight Bluetooth 5.0 Handheld Barcode Scanner with 300 Scans/Second for Inventory Management

Name: FR100 Compact & Lightweight Bluetooth 5.0 Handheld Barcode Scanner with 300 Scans/Second for Inventory Management
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: FR100
Price: 16.00 USD
Availability: InStock

Brand Name:	SR
Model Number:	FR100
MOQ:	10PCS
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Sensor Pixels:

1080pixels(H)×800 Pixel(V)

Focusing:

Laser

Charging Time/Standby Time:

1 Hour; 7 Days

Field Angle:

Horizontal: 42°; Vertical: 26.5°

Print Contrast:

25% Minimum Reflective Difference

Scanning Speed:

300 Times/second (300 Pcs (The Chip Speed))

Radio Frequency:

2.4G² - 2.485GHZ, Compatible With Bluetooth 4.0

Continuous Work Time:

Scanning For 5 Hours (Once Every 5 Seconds)

Packaging Details:

corrugated box

Highlight:

Compact & Lightweight Bluetooth Barcode Scanner

300 scans/second Handheld Barcode Scanner

Bluetooth 5.0 Ring-shaped Barcode Scanner

Product Description

FR100 Bluetooth Barcode Scanner

Compact & Lightweight Handheld Scanner for Inventory Management

The FR100 is a compact, lightweight ring-shaped barcode scanner designed for optimal comfort and efficiency. Its ergonomic design allows comfortable wear without interfering with hand movements, enabling rapid scanning of both 1D and 2D barcodes on paper and digital screens.

Featuring Bluetooth 5.0 technology for stable connections and extended transmission range, this scanner supports offline data storage for up to 10,000 records. With broad compatibility across Windows, iOS, and Android systems, it offers exceptional convenience for diverse operational environments.

Technical Specifications

Sensor Pixels	1080 pixels (H) × 800 pixels (V)
Lighting	White LED
Focusing	Laser
Roll/Pitch/Yaw	270°/±60°/±60°
Field Angle	Horizontal: 42°; Vertical: 26.5°
Print Contrast	25% Minimum reflective difference
Scanning Speed	300 times/second
Radio Frequency	2.4G² - 2.485GHz, Compatible with Bluetooth 4.0
Wireless Distance	2.4G: 50M (depending on environment)
Bluetooth Distance	Bluetooth 4.0: 10-15 meters (Open Range: 15-20M)
1D Barcode Decode Capability	EAN13, EAN-8, UPC-A, UPC-E, Code11, Interleaved 25, Code93, Code128, Codabar, ISSN, ISBN, GS1-Databar, GS1-128 Composite Code, Code 11, Industrial 25, MSI Plessey, ITF-6, ITF-14, RSS, Interleaved 2 of 5
2D Barcode Decode Capability	QR Code, Data Matrix, PDF417, Micro QR
Operating Temperature	-20℃ to +55℃
Storage Temperature	-40℃ to +70℃
Humidity	5% - 90% relative humidity, non-condensing
Shock Resistance	Designed to withstand 1.5m (6 drops)
Ambient Lighting	0 - 10000 LUX
EAN-13 Decode Range	50mm - 700mm (13mil)
Code39 Decode Range	40mm - 280mm (5mil 10byte)
QR Code Decode Range	30mm - 300mm (20mil 16byte)
Data Matrix Decode Range	45mm - 280mm (10mil 20byte)
PDF417 Decode Range	50mm - 280mm (6.7mil 7byte)
1D Minimal Resolution	≥3mil
Dimensions	54.5(L) × 49.5(W) × 35(H) mm
Weight	Scanner: 42g; Packing: 120g
Input/Operating Voltage	DC 5V; DC 3.7V
Battery Capacity	380mAh
Continuous Work Time	Scanning for 5 hours (once every 5 seconds)
Charging Time/Standby Time	1 Hour; 7 days
Operating/Standby Current	138mA; 11.8mA
Application Scenarios	Express logistics, Supermarket chain, Manufacturing, Institutions, etc.

Note: Depth of field is adjustable per customer application. Performance may be affected by barcode quality and environmental conditions.

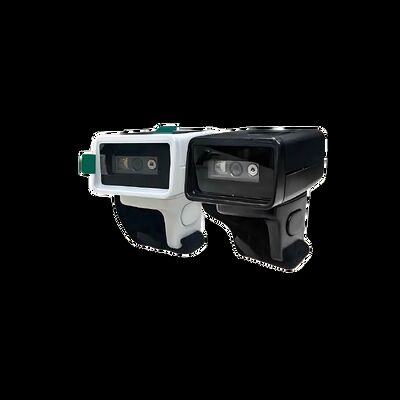

Product Images
