FD33 2MP High-Definition Intelligent Door Viewer with Auto IR Night Vision and 0.8-second Fast Recognition for Secure Access

FD33 2MP High-Definition Intelligent Door Viewer with Auto IR Night Vision and 0.8-second Fast Recognition for Secure Access

FD33 2MP High-Definition Intelligent Door Viewer with Auto IR Night Vision and 0.8-second Fast Recognition for Secure Access

Brand Name: SR
Model Number: FD33
Payment Terms: T/T,L/C
Supply Ability: 10,000/Day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Infrared Light Angle:
120°
White Balance/Exposure Mode:
Auto
Noise Reduction:
Supports 3D Noise Reduction
Night Vision Function:
Supports Infrared Fill Light And Automatic Night Vision Mode Switching
Audio Processing:
Supports Echo Cancellation
Supply Voltage:
5V/8.4V
Camera Pixel:
2 Million (1600×1200)
Highlight:

2MP High-Definition Intelligent Door Viewer

,

Auto IR Night Vision Face Recognition Module

,

0.8-second Fast Recognition Biometric Recognition Module

Product Description
FD33 2MP High-Definition Intelligent Door Viewer
This advanced intelligent door viewer combines face and palm vein biometric recognition technology, powered by the FD33 chip. Featuring a 2MP high-definition camera, automatic IR night vision, 3D noise reduction, and echo cancellation, it supports up to 100 local users with 0.8-second fast recognition. With high-precision liveness detection and stable operation from -20℃ to 60℃, it provides reliable 24-hour intelligent security monitoring for homes, offices, and commercial spaces.
Key Features
  • Accurate dual identification: Combines 3D face recognition and palm vein recognition to resist photo/video fraud and ensure maximum safety
  • Real-time video intercom: Supports live viewing of visitor images and two-way voice communication for enhanced interaction convenience
  • Industrial-grade performance: High-performance main control chip delivers fast processing, stable transmission, and crystal-clear images
  • Rugged and user-friendly: Anti-vibration and anti-fall design adapts to complex environments, lightweight construction for easy installation and operation
Technical Specifications
Core Platform
Main Control Chip FD33
Image/Audio Input Supports USB image and audio (UVC+UAC)
Display Screen Supports 800×480 resolution
Night Vision Function Supports infrared fill light and automatic night vision mode switching
Audio Processing Supports echo cancellation
Power Supply Voltage 5V/8.4V
Cat Eye Function
Camera Pixel 2 million (1600×1200)
Output Mode Standard UVC/UAC
RGB Lens Angle 800×480: 44°(H) × 68°(V), 81°(D)
1600×1200: 57.5°(H) × 72.5°(V), 92.5°(D)
IR Lens Angle 640×360: 42°(H) × 70°(V), 81°(D)
640×480: 58°(H) × 74°(V), 94°(D)
1600×1200: 58°(H) × 77°(V), 94°(D)
Infrared Light Angle 120°
White Balance/Exposure Mode Auto
Noise Reduction Supports 3D noise reduction
Video Format MJPEG/H.265
Microphone Supports analog microphone
Speaker Supports 1W@8Ω speaker
Audio Format PCM
IR-CUT Not supported
Fill Light Supported
Face Recognition Function
Supported User Count Shared with palm vein, 100 users for local registration
Recognition Speed Up to 0.8s
Adaptability Recognition height 1.4~1.9m, recognition distance 0.3~1m (0.6m optimal)
Liveness Accuracy Liveness detection: TAR: 98%, FAR: 1/100,000
Recognition Accuracy Face comparison: TAR: 98%, FAR: 1/1,000,000
Palm Vein Function
Supported User Count Shared with face recognition, 100 users for local registration
Recognition Speed Up to 0.8s
Adaptability Recognition distance 0.2~0.4m (0.3m optimal)
Liveness Accuracy Liveness detection: TAR: 98%, FAR: 1/100,000
Recognition Accuracy Palm vein comparison: TAR: 98%, FAR: 1/1,000,000
Environmental Reliability
Operating Temperature -20℃ ~ 60℃
Storage Temperature -40℃ ~ 70℃
ESD Protection Compliant with GA374-2019 Standard

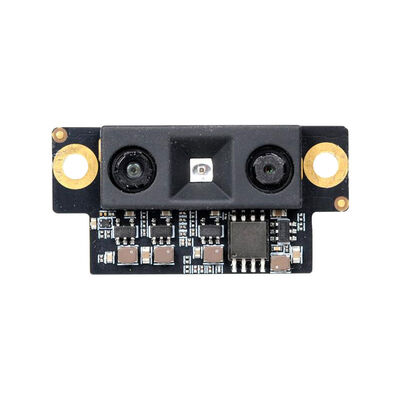

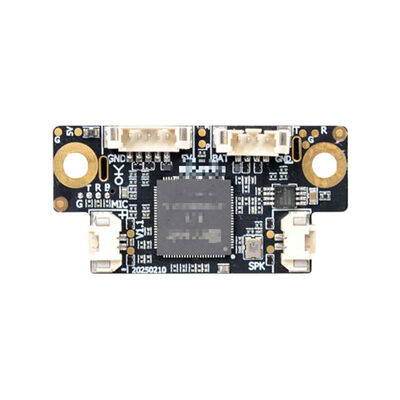

Product Images
FD33 2MP High-Definition Intelligent Door Viewer with Auto IR Night Vision and 0.8-second Fast Recognition for Secure Access 0
FD33 2MP High-Definition Intelligent Door Viewer with Auto IR Night Vision and 0.8-second Fast Recognition for Secure Access 1
Applications
  • Smart building security: Empower office buildings and commercial complexes with face recognition access, video intercom, and elevator linkage call to improve management efficiency and safety
  • Smart community access management: Used for community gates and unit buildings, allowing residents quick access via face recognition, visitor video intercom, and real-time property monitoring of access control records
  • High-end smart home: Integrated into smart door locks, supports video intercom between indoor terminals and visitors, and enables remote control of home security systems
Technical Support and Services
We offer comprehensive technical support and services for the FD33 Intelligent Door Viewer. Our expert team is available to provide complete assistance for all your needs.
Services Offered
  • 24/7 Customer Service
  • Installation Assistance
  • Troubleshooting & Diagnostics
  • Software Upgrades & Updates
  • Hardware Maintenance & Replacements
Support Resources
  • Knowledge Base
  • FAQs
  • User Manuals & Documentation
  • Video Tutorials
  • Forum & Community
