Compact Handheld POS Terminal with 60fps High Frame Rate and Multi-Mobile Payment Support

Compact Handheld POS Terminal with 60fps High Frame Rate and Multi-Mobile Payment Support

Brand Name:	SR
MOQ:	1pc
Price:	13-20usd
Payment Terms:	L/C,T/T
Supply Ability:	4000 boxes/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs

2D:

Aztec Code, Han Xin Code, Data Matrix, Maxi Code, Micro QR Code, QR Code, Etc.

1D:

Standard One-dimensional Code

Postal Code:

Australian Post, British Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Etc.

Standby Current:

65mA(Maximum)@VCC 3.3V

Operating Temperature:

-20℃~+50℃

Storage Temperature:

-40℃~+85℃

Operating Vibration:

10~150HZ, 0.5G, Triaxial Direction, 1min/oct, 1 Time/axial

Durable Vibration:

10~150HZ, 2G, Triaxial Direction, 1min/oct, 20 Times/axial

Fall Test:

Withstand 1.2m Drop To Cement Floor (50 Times Of 1.2m Repeated)

Packaging Details:

Ctn

Highlight:

60fps High Frame Rate Handheld POS Terminal

Multi-Mobile Payment Support Portable POS Terminal

Compact Design Mobile Payment Terminal

Product Description

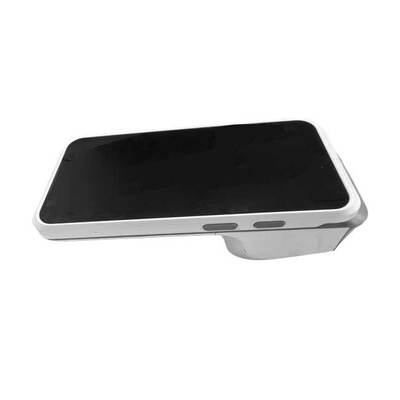

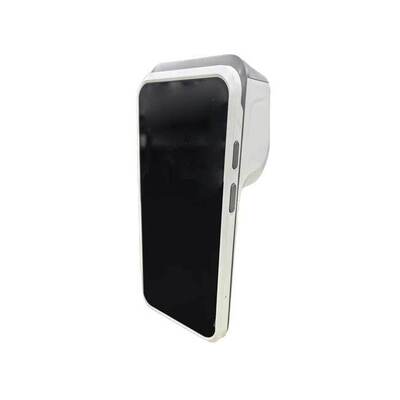

Compact Handheld POS Terminal

Compact and intelligent, our handheld POS terminal is the definitive mobile payment solution. Engineered for on-the-go merchants, it delivers fast, seamless payment processing, supports diverse payment methods, and boasts exceptional scanning performance.

Key Features

Compact and lightweight design for easy portability and operation
Supports multiple payment methods including credit cards, debit cards, mobile payments, and QR code payments
Comprehensive functionality with touchscreen, barcode scanner, and built-in printer
Stable wireless communication via Bluetooth and Wi-Fi for fast connectivity
Rapid payment processing with instant receipt printing capabilities

Technical Specifications

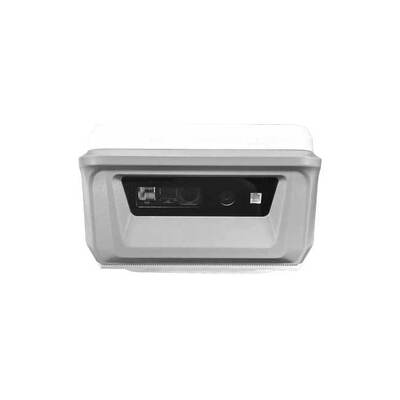

Image sensor	Mono CMOS
Pixel	1280(H)× 800(V)
Shutter	Global shutter
Frame rate	Up to 60fps
Illumination	White light
Aiming	Red laser
Field of view	Horizontal 39.5°, Vertical 26.1°
Decode types	2D: Aztec Code, Han Xin Code, Data Matrix, Maxi Code, Micro QR Code, QR Code, etc. 1D: Standard one-dimensional code Postal Code: Australian Post, British Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), etc.
Depth of Field (DOF)	EAN-13(13mil): 45~590mm Code 39(20mil): 45~930mm Code 39(10mil): 65~470mm Code 39(5.5mil): 70~340mm Code 39(3.9mil): 60~220mm Data Matrix(15mil): 50~420mm Data Matrix(10mil): 50~300mm
Resolution	1D: 2.5mil, Data Matrix: 5mil, PDF417: 3mil
Contrast	≥20%
Angle	Pitch: ±60°, Tilt: ±180°, Skew: ±60°
