FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones

Name: FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: FPV-003-F
Availability: InStock

Brand Name:	SR
Model Number:	FPV-003-F
Payment Terms:	T/T,L/C
Supply Ability:	10,000/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Sensor:

1/4.3” CMOS Sensor

Horizontal Resolution:

1200TVL

Pixel Size:

3.0um

Aspect Ratio:

16:9

Video System:

PAL/NTSC Optional

Field Of View FOV：:

H90° V45°

White Balance:

Auto

Ctronic Shutter Auto Low Light Sensitivity:

F1.6/0.0001LUX

Noise Reduction:

Highlight:

1200TVL FPV Camera

2D Noise Reduction Drone Camera

Lightweight Aerial Camera

Product Description

FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones

The FPV-003-F Aerial Photography Camera is specifically engineered for FPV drones, featuring a compact and lightweight design ideal for FPV racing drones. It offers high-definition night vision capabilities and ultra-low latency performance, providing clear, real-time visual feedback during aerial photography operations.

Key Features

Image Capture: 2-megapixel lens + 1/4.3-inch CMOS sensor, 1200 TVL resolution, PAL/NTSC selectable, 16:9 aspect ratio
Environmental Adaptability: 2D noise reduction, COLOR day/night mode, supports multiple scene modes, low-light sensitivity 0.5Lux, operating temperature -20°C to 70°C
Operation settings: Supports OSD menu with bilingual Chinese-English interface for convenient parameter adjustment
Power supply stability: 5-24V wide voltage input, 50mA low current consumption, ensuring stable operation without overheating

Technical Specifications

Category	Parameters
Sensor	1/4.3" CMOS Sensor
Horizontal Resolution	1200TVL
Pixel Size	3.0μm
Image Aspect Ratio	16:9
Video System	PAL/NTSC Selectable
Field of View FOV	H90° V45°
Electronic Shutter	Auto
Low Light Sensitivity	F2.0/0.5Lux
White Balance	Auto
Operating Voltage Range	5V-24V
Noise Reduction	2D
Day/Night Mode	COLOR
OSD Menu	Supported
Operating Temperature	-20℃-70℃
Dimensions	19mm * 19mm * 23.6mm (L * W * H)
Operating Current	50mA@12V
Lens Resolution	2.0MP
Language	中文 / English
Scene Modes	Auto/Color/B&W/EXT

Product Images

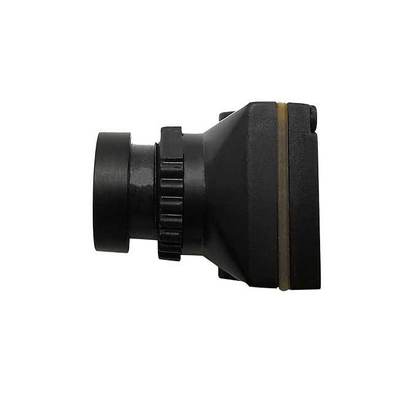

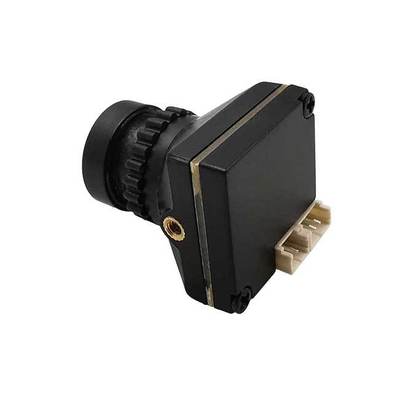

FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones 0

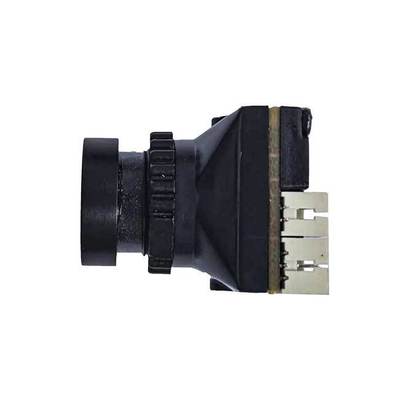

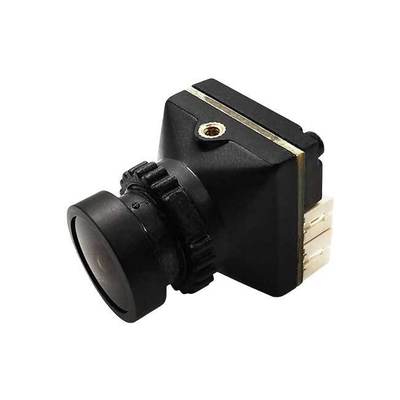

FPV-003-F Lightweight Mini Aerial Camera 1200TVL HD Low Latency Specifically Designed For Drones 1

Customization Options

Brand Name: SR

Place of Origin: China

Delivery Time: 7 Days

Payment Terms: T/T, L/C

Supply Ability: 10,000/Day

Support and Services

Installation and configuration assistance
Software update assistance
Troubleshooting and diagnostic assistance
Replacement parts and repairs
Product maintenance and cleaning
Warranty coverage

Packaging and Shipping

Package: Bubble envelope or cardboard box

Shipping: By express, air, or sea
