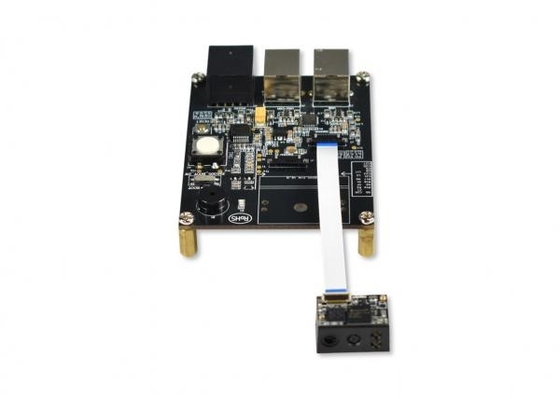

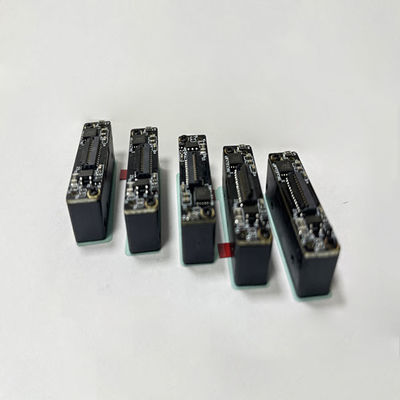

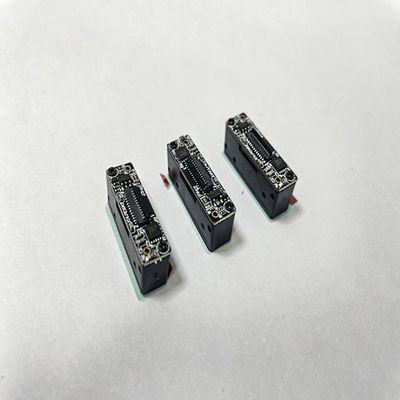

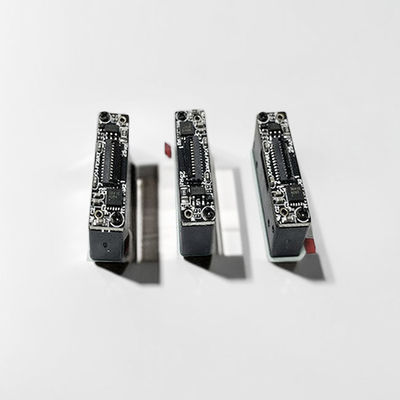

3.9mil 5.5mil POS Engine Credit Card Reader For Secure Convenient Mobile Payments

Brand Name:	SR
MOQ:	1PC
Price:	1usd
Payment Terms:	L/C, T/T
Supply Ability:	10,000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs，Aiming (red laser) :EN/IEC 60825-1:2007 (class 2)

Dimension:

23.4x16.5x.8

Weight:

2.6g

Operation Voltage:

VCC 3.0-3.6V, VCC_IO 3.0-3.6V

Operation Current:

108mA（max)

Standby Current:

65mA(max)

Fall Test:

Withstand 1.2m Drop To Cement Floor(50 Times Repeated) 1.2meters

Packaging Details:

Carton

Highlight:

3.9mil POS Engine

5.5mil POS Engine

10mil Credit Card Reader

Product Description

Secure & Convenient Mobile Payments with POS Engine & Credit Card Reader

Description:

The Secure & Convenient Mobile Payments with POS Engine & Credit Card Reader combines security and convenience to provide users with a secure and reliable mobile payment experience.

This solution includes a mobile payments POS engine and a credit card reader, aiming to ensure the security and convenience of payments. The mobile payments POS engine utilizes encryption technology and secure protocols to protect users' payment information effectively. When users make payments using mobile payment applications, they can trust the security and enjoy a peace of mind during the payment process.

The credit card reader, as part of the solution, offers a convenient credit card payment method. It reliably reads credit card information through a secure card reading mechanism, ensuring the accuracy and security of the payment process. Users only need to insert the credit card into the card reader or use near-field communication technology for contactless payment, without worrying about the risk of information leakage.

This secure and convenient mobile payment solution provides users with a flexible payment method. Users can make payments anytime, anywhere using mobile payment applications without the need to carry large amounts of cash or credit cards, while enjoying a secure and reliable payment guarantee. The combination of the mobile payments POS engine and credit card reader delivers a secure, convenient, and efficient payment solution.

Specification:

Parameter	Performance
Image sensor	Mono CMOS
Pixel	1280(H)× 800(V)
Shutter	Global shutter
Frame rate	Up to 60fps
Illumination	White light
Aiming	Red laser
Field of view	Horizontal 39.5°,Vertical 26.1°
Decode type	2D	Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc
	1D	Standard one-dimensional code
	Postal Code	Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc
DOF*	EAN-13(13mil)	45~590mm
	Code 39(20mil)	45~930mm
	Code 39(10mil)	65~470mm
	Code 39(5.5mil)	70~340mm
	Code 39(3.9mil)	60~220mm
	Data Matrix(15mil)	50~420mm
	Data Matrix(10mil)	50~300mm
Resolution*	1D:2.5mil,Data Matrix:5mil,PDF417:3mil
Contrast*	≥20%
Angle **	pitch	±60°
	tilt	±180°
	skew	±60°
