50-300mm 2D Barcode Scan Engine Module For Scanner Assembly

Brand Name:	SR
MOQ:	1PC
Price:	1usd
Payment Terms:	L/C, T/T
Supply Ability:	10,000 pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs

Operation Voltage:

VCC 3.0-3.6V, VCC_IO 3.0-3.6V

Operation Current:

106mA（max)

Standby Current:

65mA(max)

Operation Temperature:

-20℃ To 50℃

Storage Temperature:

-40 To 85℃

Image Sensor:

Mono CMOS

Pixel:

1280(H)*800(V)

Shutter:

Global Shutter

Frame Rate:

Up To 60fps

Illumination:

White Light

Packaging Details:

Carton

Highlight:

50mm 2D Barcode Scan Engine

300mm 2D Barcode Scan Engine

13mil 2d Barcode Scanner Module

Product Description

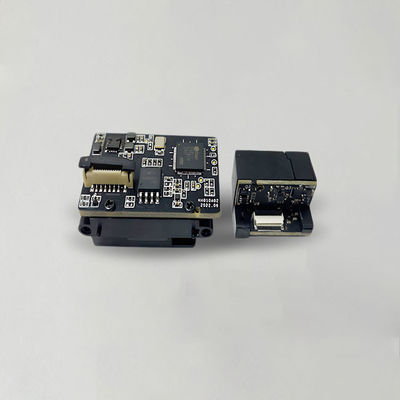

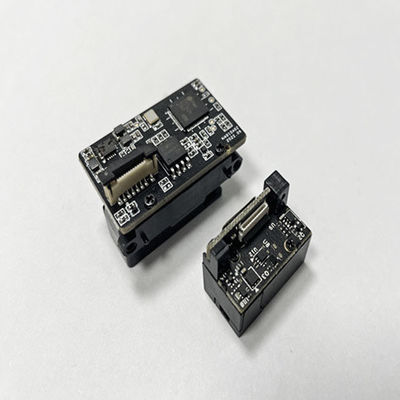

2D Barcode Scan Engine 2d Barcode Scanner Module for The Scanner Assembly Use

Description:

The 2D Barcode Scan Engine is a compact module designed for integration into a scanner assembly, enabling efficient and accurate scanning of 2D barcodes. This barcode scanner module incorporates advanced optical technology and decoding algorithms to deliver reliable performance.

The module supports the scanning of various 2D barcode formats, including QR codes, Data Matrix codes, and PDF417 codes, as well as traditional 1D barcodes. It utilizes high-resolution image sensors and optical lenses to capture clear and sharp barcode images, ensuring precise decoding.

The scan engine module is designed for easy integration and can be seamlessly integrated into different scanning devices such as handheld scanners, mobile devices, and kiosks. It provides a standardized interface for communication with the host device, making it simple to incorporate into existing systems.

With its fast scanning speed and accurate decoding capabilities, the 2D Barcode Scan Engine enhances productivity and efficiency in applications such as retail, logistics, healthcare, and ticketing systems. It enables quick and reliable barcode scanning, improving customer service and streamlining operations.

Spcecification:

Parameter	Performance
Image sensor	Mono CMOS
Pixel	1280(H)× 800(V)
Shutter	Global shutter
Frame rate	Up to 60fps
Illumination	White light
Aiming	Red laser
Field of view	Horizontal 39.5°,Vertical 26.1°
Decode type	2D	Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc.
	1D	Standard one-dimensional code
	Postal Code	Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc.
DOF*	EAN-13(13mil)	45~590mm
	Code 39(20mil)	45~930mm
	Code 39(10mil)	65~470mm
	Code 39(5.5mil)	70~340mm
	Code 39(3.9mil)	60~220mm
	Data Matrix(15mil)	50~420mm
	Data Matrix(10mil)	50~300mm
Resolution*	1D:2.5mil,Data Matrix:5mil,PDF417:3mil
Contrast*	≥20%
Angle **	pitch	±60°
	tilt	±180°
	skew	±60°
