60fps 1D Barcode Scan Engine Component CMOS For Scanner Assembly Industry PDA Use

60fps 1D Barcode Scan Engine Component CMOS For Scanner Assembly Industry PDA Use

Brand Name: SR
MOQ: 1PC
Price: 1usd
Payment Terms: L/C, T/T
Supply Ability: 10,000 pcs/day
Detail Information
Place of Origin:
China
Certification:
Rohs
Image Sensorr:
Black & White Imaging CMOS
Pixel:
1280x800
Shutter:
Global Shutter
Frame Rate:
60fps
Illumination:
White Light
Aim:
Red Laser
Filed Of View:
H39.5, V26.1
Readable Code:
1D
Packaging Details:
Carton
Highlight:

60fps 1D Barcode Scan Engine

,

CMOS 1D Barcode Scan Engine

,

20mil barcode scan engine

Product Description

1D Barcode Scan Engine Component for Scanner Assembly Industry Use



Description:

The 1D Barcode Scan Engine Component for Scanner Assembly Industry Use is a specialized electronic component designed for the assembly industry's scanner applications. It features high-performance scanning capabilities specifically tailored to meet the demands of the assembly line environment.

The 1D Barcode Scan Engine Component for Scanner Assembly Industry Use offers several key features. Firstly, it provides fast and accurate scanning of 1D barcodes, ensuring efficient and reliable data capture in high-speed assembly line operations. Secondly, it is designed to withstand the rugged conditions of the assembly industry, with resistance to dust, moisture, and shock, ensuring long-lasting durability. Thirdly, it supports seamless integration with assembly line systems, enabling real-time data transmission and integration into production processes. Additionally, it typically features a compact and ergonomic design, facilitating easy installation and comfortable use by operators.

The 1D Barcode Scan Engine Component for Scanner Assembly Industry Use is widely utilized in various assembly line applications. It enhances operational efficiency by enabling quick and precise barcode scanning, helping to streamline production processes and reduce errors. With its robust construction and reliable performance, it is well-suited for the demanding requirements of the assembly industry. The 1D Barcode Scan Engine Component empowers the scanner assembly industry with efficient and accurate data capture capabilities, contributing to improved productivity and quality control in assembly line operations.



Specification:

Parameter Performance

Image Sensor

Black and white imaging CMOS
Pixel 1280(H)× 800(V)
Shutter global exposure
Frame Rate 60fps
Illumination White
Aim Red Laser
Field of View H 39.5°,V 26.1°
Reabable Code

1D

Standard 1D Barcode
  Postal Code Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC)等

Reading Depth of Field*

EAN-13(13mil) 45~590mm
  Code 39(20mil) 45~930mm
  Code 39(10mil) 65~470mm
  Code 39(5.5mil) 70~340mm
  Code 39(3.9mil) 60~220mm
  Data Matrix(15mil) 50~420mm
  Data Matrix(10mil) 50~300mm
Reading accuracy* 1D:2.5mil,Data Matrix:5mil,PDF417:3mil
Reading Contrast* ≥20%



Reading Angle**

(pitch) ±60°
  (tilt) ±180°
  (skew) ±60°
Standard 1D Barcode



Details:

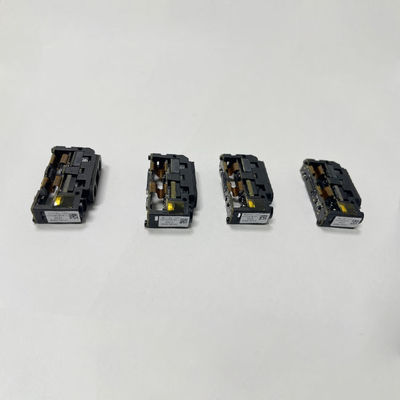

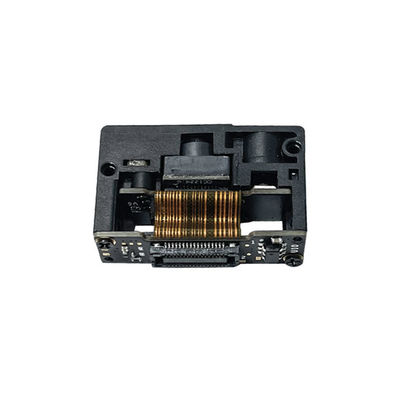

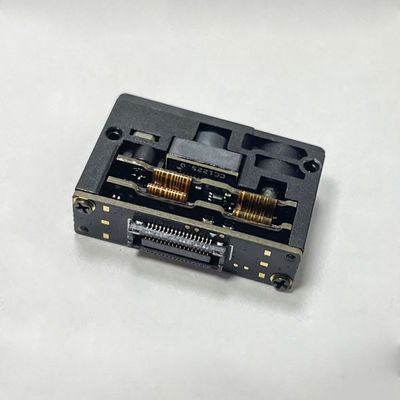

60fps 1D Barcode Scan Engine Component CMOS For Scanner Assembly Industry PDA Use 0



60fps 1D Barcode Scan Engine Component CMOS For Scanner Assembly Industry PDA Use 1
