2d QR POS Engine Module For Mobile Handheld POS Terminal, Industrial Tablet With Clear Aimer Light

2d QR POS Engine Module For Mobile Handheld POS Terminal, Industrial Tablet With Clear Aimer Light

  • High Light

    60fps POS Engine

    ,

    15mil POS Engine

    ,

    20mil 2d barcode scan engine

  • Dimension
    23.4x16.5x.8
  • Weight
    2.6g
  • Operation Voltage
    VCC 3.0-3.6V, VCC_IO 3.0-3.6V
  • Operation Current
    108mA(max)
  • Standby Current
    65mA(max)
  • Fall Test
    Withstand 1.2m Drop To Cement Floor(50 Times Repeated) 1.2meters
  • Place of Origin
    China
  • Brand Name
    HST
  • Certification
    Rohs,Aiming (red laser) :EN/IEC 60825-1:2007 (class 2)
  • Minimum Order Quantity
    1PC
  • Price
    1usd
  • Packaging Details
    Carton
  • Delivery Time
    7-10 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10,000 pcs/day

2d QR POS Engine Module For Mobile Handheld POS Terminal, Industrial Tablet With Clear Aimer Light

Simple & Fast Payment Solution Mobile Payments POS Engine Credit Card Reader



Description:

The Simple & Fast Payment Solution Mobile Payments POS Engine Credit Card Reader combines easy operation with efficient payment functionalities, providing users with a convenient mobile payment experience.

This payment solution consists of a mobile payments POS engine and a credit card reader. The mobile payments POS engine features a simple interface and operational flow, allowing users to easily complete payment transactions. It supports mobile payment applications such as Alipay, WeChat Pay, etc., where users simply need to open the corresponding app, scan a QR code, or perform fingerprint recognition to complete the payment.

The credit card reader is an integral part of this solution. It can rapidly read credit card information, ensuring the efficiency of the payment process. Users only need to insert the credit card into the card reader or use near-field communication technology for contactless payment to complete credit card transactions.

This simple and fast payment solution offers a convenient mobile payment method. Users can make payments anytime, anywhere using mobile payment apps without the need to carry large amounts of cash or credit cards. The combination of the mobile payments POS engine and credit card reader streamlines the payment process, reducing waiting time in queues and enhancing the payment experience.

In summary, the Simple & Fast Payment Solution Mobile Payments POS Engine Credit Card Reader provides users with a convenient mobile payment experience. Its simple operational flow and efficient payment functionalities make payments more convenient and swift.



Specification:



Parameter Performance
Image sensor Mono CMOS
Pixel 1280(H)× 800(V)
Shutter Global shutter
Frame rate Up to 60fps
Illumination White light
Aiming Red laser
Field of view Horizontal 39.5°,Vertical 26.1°
Decode type



2D



Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc

  1D Standard one-dimensional code
  Postal Code Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc





DOF*

EAN-13(13mil) 45~590mm
  Code 39(20mil) 45~930mm
  Code 39(10mil) 65~470mm
  Code 39(5.5mil) 70~340mm
  Code 39(3.9mil) 60~220mm
  Data Matrix(15mil) 50~420mm
  Data Matrix(10mil) 50~300mm
Resolution* 1D:2.5mil,Data Matrix:5mil,PDF417:3mil
Contrast* ≥20%



Angle **

pitch ±60°
  tilt ±180°
  skew ±60°



Details:

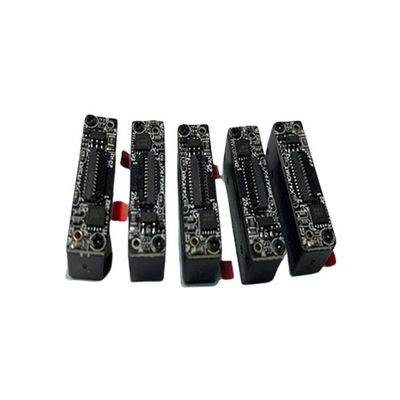

2d QR POS Engine Module For Mobile Handheld POS Terminal, Industrial Tablet With Clear Aimer Light 0

2d QR POS Engine Module For Mobile Handheld POS Terminal, Industrial Tablet With Clear Aimer Light 1
