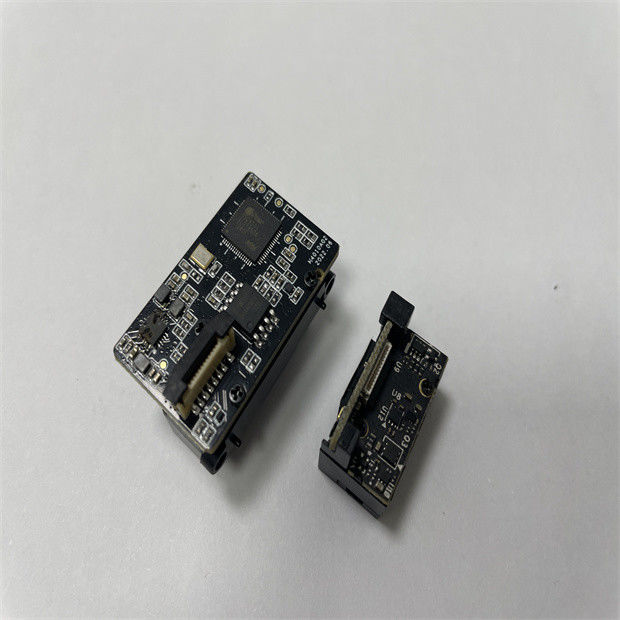

Anti-Interference 2D Barcode Scanning Engine for Accurate Reading
Description:
A 2D barcode scan engine is a device used to capture and decode 2D barcodes. It utilizes optical sensors and image processing technology to quickly and accurately read 2D barcodes. Compared to traditional 1D barcode scanners, 2D barcode scan engines can read more complex and information-rich barcodes, such as QR codes and Data Matrix codes. They find wide applications in industries such as retail, logistics, and manufacturing.
2D barcode scan engines come with various features and capabilities. Firstly, they offer high-speed scanning performance, allowing for quick barcode reading. Secondly, they support multi-angle scanning, enabling the reading of barcodes from different orientations, providing greater flexibility and convenience. Additionally, 2D barcode scan engines possess anti-interference capabilities, enabling them to read damaged, blurred, or low-contrast barcodes, thereby improving decoding success rates.
These scan engines can be integrated with various devices, such as point-of-sale terminals, smartphones, tablets, etc., to meet the requirements of different application scenarios. Moreover, they typically exhibit durability and protection ratings, making them suitable for challenging working environments.
In summary, 2D barcode scan engines employ optical and image processing technologies to efficiently and accurately read and decode 2D barcodes. Their high-speed scanning performance, multi-angle scanning, and anti-interference capabilities make them essential tools across various industries.
Spcecification:
| Parameter | Performance | |
| Image sensor | Mono CMOS | |
| Pixel | 1280(H)× 800(V) | |
| Shutter | Global shutter | |
| Frame rate | Up to 60fps | |
| Illumination | White light | |
| Aiming | Red laser | |
| Field of view | Horizontal 39.5°,Vertical 26.1° | |
| Decode type |
2D |
Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc. |
| 1D | Standard one-dimensional code | |
| Postal Code | Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc. | |
|
DOF* |
EAN-13(13mil) | 45~590mm |
| Code 39(20mil) | 45~930mm | |
| Code 39(10mil) | 65~470mm | |
| Code 39(5.5mil) | 70~340mm | |
| Code 39(3.9mil) | 60~220mm | |
| Data Matrix(15mil) | 50~420mm | |
| Data Matrix(10mil) | 50~300mm | |
| Resolution* | 1D:2.5mil,Data Matrix:5mil,PDF417:3mil | |
| Contrast* | ≥20% | |
|
Angle ** |
pitch | ±60° |
| tilt | ±180° | |
| skew | ±60° | |
