Description:
Handhold Barcode Scanner Wiring Connecting Barcode Scanners for Super Market is a computer peripheral device that utilizes a USB connection to scan and decode barcodes. It is widely used in various industries, such as retail, logistics, and healthcare, for efficient and accurate barcode scanning.
The barcode scanner consists of a handheld or fixed-mount device that connects to a computer or compatible device using a USB cable. The USB cable serves as both the power source and the data transfer medium between the scanner and the host device.
Equipped with either a built-in laser or image sensor, the scanner captures the barcode image, which is then processed using internal hardware and software algorithms for decoding. The decoded data is sent to the connected computer or device as keyboard input, mimicking manual typing of the barcode content.
USB wired barcode scanners are renowned for their plug-and-play functionality, requiring minimal setup and configuration. They are compatible with various operating systems, including Windows, macOS, and Linux, making them widely adaptable in diverse computing environments.
Parameter:
| Exterior | |
| Size | 169.0mm (W)×78.3mm (D)×59.4mm (H) |
| Weight | 280g |
| Communication Interface | USB HID,USB COM,TTL |
| Adapt to Environment | |
| Operating temperature | -20℃ to 50℃[-22℉ to 140℉] |
| Storage Temperature | -40℃ to 70℃[-40℉ to 158℉] |
| Operating and storage humidity | Up to 93%RH,non-condensing at 60℃[140℉] |
| Lighting Environment | 0~100000ux |
| Electric | |
| Operating Voltage | DC5V±10% |
| Working Current | 240mA |
| Stand-by Current | 160mA |

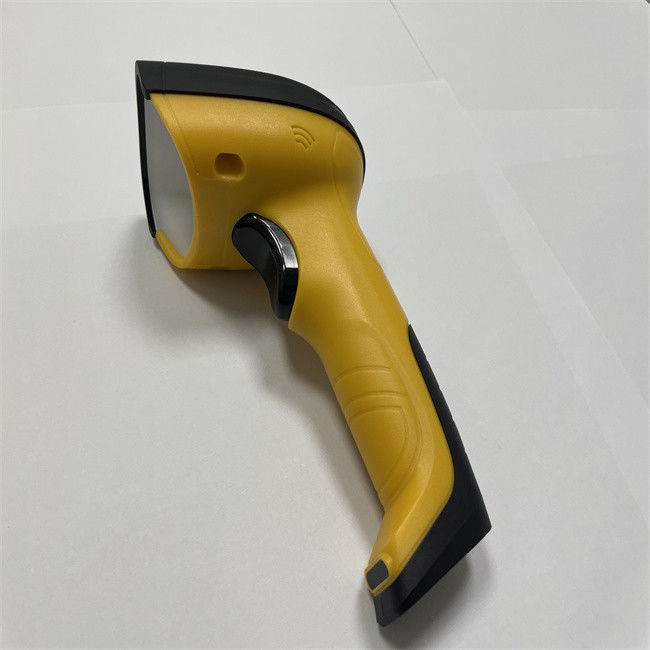

Product Photos:
