HE200 Handheld Barcode Scanner with 80-150mm Reading Depth, USB/RS232

HE200 Handheld Barcode Scanner with 80-150mm Reading Depth, USB/RS232

HE200 Handheld Barcode Scanner with 80-150mm Reading Depth, USB/RS232

Brand Name: SR
Model Number: HE200
MOQ: 10PCS
Price: 13-20usd
Payment Terms: L/C,T/T
Supply Ability: 4000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Typical Reading Depth Of Field (HD: 3mil Code128):
80 - 150mm
Reading Angle*:
Tilt ±60°, Rotation ±360°, Skew ±60°
Communication Interface:
USB Or RS232
Illumination:
White Light LED (Red Light Or Blue Light Optional)
Aiming:
Red Line LED
Field Of View Angle:
Horizontal 40°, Vertical 31°
Packaging Details:
corrugated paper box
Highlight:

handheld barcode scanner with triple feedback

,

logistics barcode scanner for warehousing

,

HE200 handheld scanner accurate data collection

Product Description
HE200 Handheld Barcode Scanner: Triple Scanning Feedback Ensures Accurate Data Collection in Logistics & Warehousing

For industrial environments where toughness and efficiency matter, the HE200 Handheld Industrial Barcode Scanner is the ideal choice. It combines rapid scanning with pinpoint accuracy, rugged durability for harsh conditions, and direct efficiency improvements for business data collection—solving the challenges of slow, unreliable data capture in demanding workplaces.

Key Features
  • Triple scanning feedback (LED, buzzer, vibration) ensures reliable operation confirmation
  • Rugged construction withstands 50 drops from 1.5m height
  • Wide operating temperature range (-10℃ to 50℃)
  • Multiple interface options (USB or RS232)
  • Supports extensive 1D and 2D barcode symbologies
Technical Specifications
Barcode Scanning Performance Parameters
Image Sensor Black-and-white imaging CMOS
Pixel 1056*1248
Shutter Global exposure
Illumination White light LED (Red light or blue light optional)
Aiming Red line LED
Field of View Angle Horizontal 40°, Vertical 31°
Supported 2D Symbologies Aztec Code, Han Xin, Data Matrix, MaxiCode, QR, Micro QR, MQR, Dot Code, Grid Matrix, Codablock A, Codablock F, PDF417, Micro PDF417
Supported 1D Symbologies Codabar, Code11, Code128, ISBT128, Code32, Code39, TLC39, Code93/93i, BC412, UK Plessey, Anker39, EAN-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E
Mechanical/Electrical/Performance Parameters
Communication Interface USB or RS232
Prompt Method LED, Buzzer, Vibration
Dimension 211*76*100mm
Weight 350g
Working Voltage DC5V±10%
Working Current 320mA@5V
Standby Current 180mA@5V
Environmental Parameters
Operating Temperature -10℃ - 50℃
Storage Temperature -20℃ - 70℃
Relative Humidity 5% - 95% (No condensation)
Drop Rating Can withstand 50 drops from 1.5m in the air
Ambient Illumination 0 - 100000LUX
Product Images

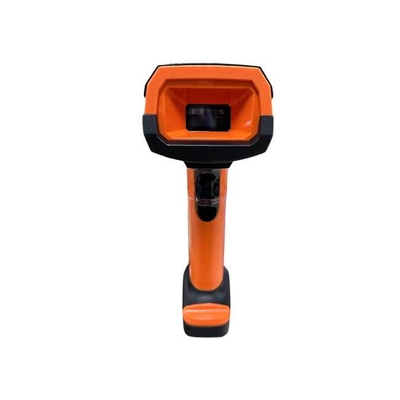

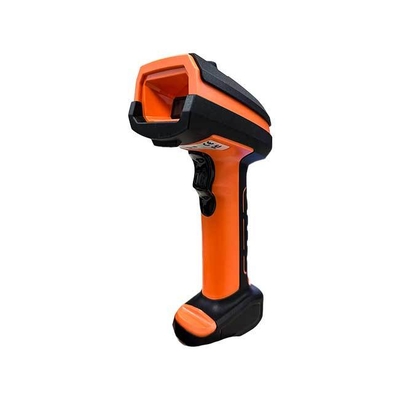

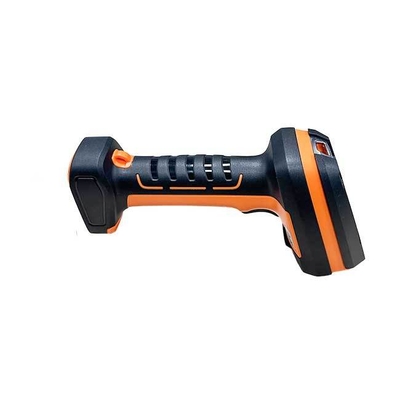

HE200 Handheld Barcode Scanner with 80-150mm Reading Depth, USB/RS232 0 HE200 Handheld Barcode Scanner with 80-150mm Reading Depth, USB/RS232 1
