Compact POS Mobile Terminal For Secure Payment Processing Android POS Terminal

Brand Name:	SR
MOQ:	1pc
Price:	13-20usd
Payment Terms:	L/C, T/T
Supply Ability:	4000 boxes/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs

Product:

POS Mobile Terminal

Operating Voltage:

VCC：3.0~3.6V VCC_IO：3.0~3.6V

Operating Current:

106mA(Maximum)@VCC 3.3V

Standby Current:

65mA(Maximum)@VCC 3.3V

Operating Temperature:

-20℃~+50℃

Storage Temperature:

-40℃~+85℃

Operating Vibration:

10~150HZ, 0.5G, Triaxial Direction, 1min/oct, 1 Time/axial

Durable Vibration:

10~150HZ, 2G, Triaxial Direction, 1min/oct, 20 Times/axial

Fall Test:

Withstand 1.2m Drop To Cement Floor (50 Times Of 1.2m Repeated)

Packaging Details:

Ctn

Highlight:

compact POS Mobile Terminal

60fps POS Mobile Terminal

10mil android pos terminal

Product Description

Compact POS Mobile Terminal for Secure Payment Processing Smart Pos Terminal

Description:

The Compact POS Mobile Terminal for Secure Payment Processing, also known as a Smart POS Terminal, is a small-sized mobile payment device designed specifically for secure payment processing. It combines a compact form factor with powerful functionality to provide merchants with a secure and reliable payment solution.

The compact smart POS terminal has several features. Firstly, it supports multiple payment methods, including credit cards, debit cards, mobile payments, and NFC. Secondly, it is equipped with advanced security features such as data encryption, PIN entry, and secure chips to protect the security of payment data. Thirdly, it has a convenient user interface and user-friendly software applications to facilitate quick payment transactions for merchants. Fourthly, it typically has high-speed processing capabilities and stable wireless communication to ensure fast and reliable payment transactions.

The compact smart POS terminal is widely used in industries such as retail, hospitality, and service. Merchants can use this terminal for payment processing in-store or on-the-go, enabling convenient transaction experiences. The compact terminal's small size and powerful functionality empower merchants to adapt to various payment needs while ensuring the security and accuracy of payment information.

Specification:

Parameter	Performance
Image sensor	Mono CMOS
Pixel	1280(H)× 800(V)
Shutter	Global shutter
Frame rate	Up to 60fps
Illumination	White light
Aiming	Red laser
Field of view	Horizontal 39.5°,Vertical 26.1°
Decode type	2D	Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc.
	1D	Standard one-dimensional code
	Postal Code	Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc.
DOF*	EAN-13(13mil)	45~590mm
	Code 39(20mil)	45~930mm
	Code 39(10mil)	65~470mm
	Code 39(5.5mil)	70~340mm
	Code 39(3.9mil)	60~220mm
	Data Matrix(15mil)	50~420mm
	Data Matrix(10mil)	50~300mm
Resolution*	1D:2.5mil,Data Matrix:5mil,PDF417:3mil
Contrast*	≥20%
Angle **	pitch	±60°
	tilt	±180°
	skew	±60°

Details:

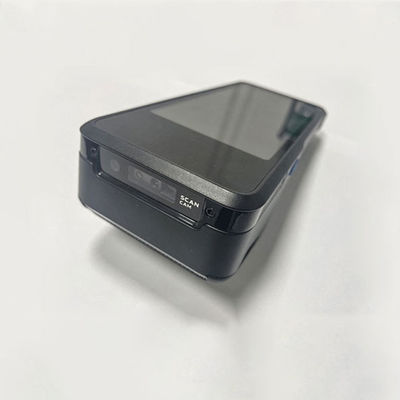

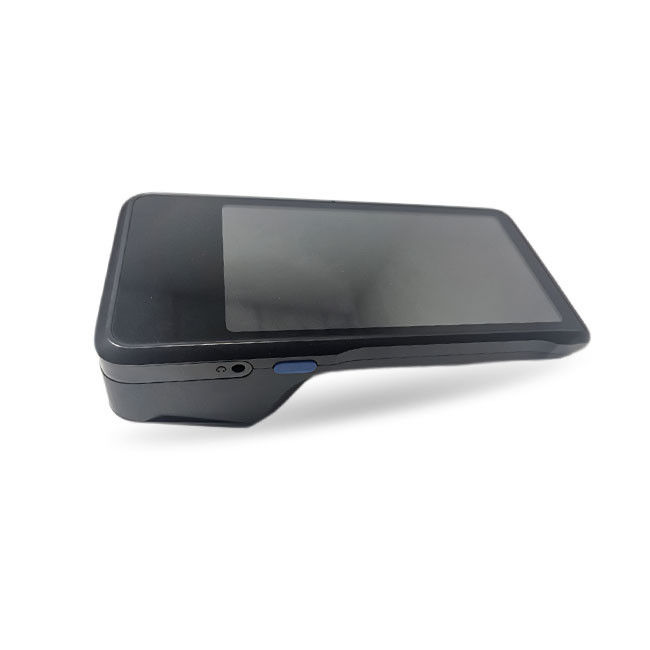

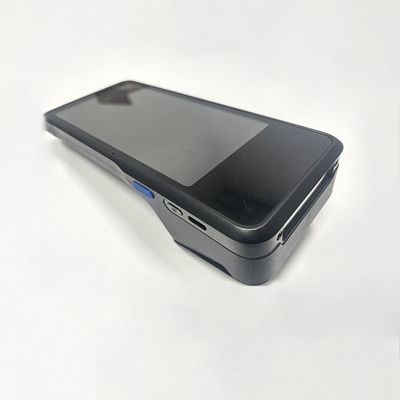

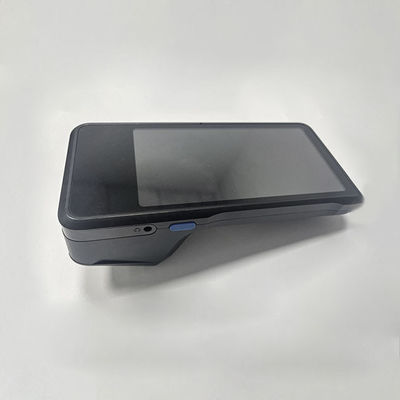

Compact POS Mobile Terminal For Secure Payment Processing Android POS Terminal 0

Compact POS Mobile Terminal For Secure Payment Processing Android POS Terminal 1
