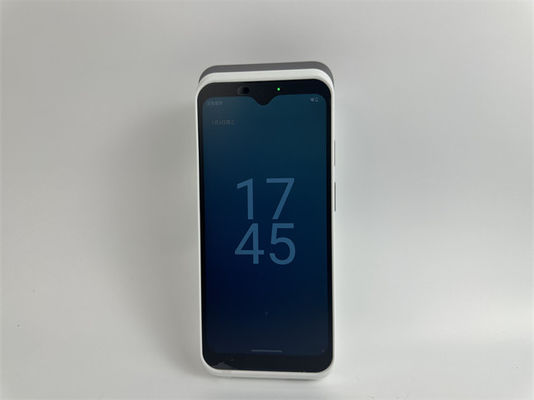

1200x800 Portable POS Terminal Android Smart Payment Device 4G NFC Mobile System

1200x800 Portable POS Terminal Android Smart Payment Device 4G NFC Mobile System

  • High Light

    1200x800 POS Mobile Terminal

    ,

    NFC POS Mobile Terminal

    ,

    4g android payment terminal

  • Product
    POS Mobile Terminal
  • Operating Voltage
    VCC:3.0~3.6V VCC_IO:3.0~3.6V
  • Operating Current
    106mA(Maximum)@VCC 3.3V
  • Standby Current
    65mA(Maximum)@VCC 3.3V
  • Operating Temperature
    -20℃~+50℃
  • Storage Temperature
    -40℃~+85℃
  • Operating Vibration
    10~150HZ, 0.5G, Triaxial Direction, 1min/oct, 1 Time/axial
  • Durable Vibration
    10~150HZ, 2G, Triaxial Direction, 1min/oct, 20 Times/axial
  • Fall Test
    Withstand 1.2m Drop To Cement Floor (50 Times Of 1.2m Repeated)
  • Place of Origin
    China
  • Brand Name
    HST
  • Certification
    Rohs
  • Minimum Order Quantity
    1pc
  • Price
    13-20usd
  • Packaging Details
    Ctn
  • Delivery Time
    7-15 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    4000 boxes/week

1200x800 Portable POS Terminal Android Smart Payment Device 4G NFC Mobile System

Small-sized Mobile Payment Device for Secure Payments android mobile pos terminal

Android Mobile POS Terminal with Secure Payment Features POS Mobile Terminal



Description:

The small-sized mobile payment device for secure payments is a compact device known as an Android mobile POS terminal. It is a mobile payment terminal based on the Android operating system, providing a secure and reliable payment solution.

The small-sized Android mobile POS terminal has several features. Firstly, it supports multiple payment methods, including credit cards, debit cards, mobile payments, and QR code payments. Secondly, it has advanced security features such as data encryption, fingerprint recognition, and password protection to ensure the security of payment data. Thirdly, it incorporates smartphone functionalities such as a touchscreen, camera, and wireless connectivity, enabling convenient payment processing and interactive operations for merchants. Fourthly, it typically comes with a rich set of software applications that support inventory management, sales reporting, and customer management.

The small-sized Android mobile POS terminal is widely used in industries such as retail, hospitality, and logistics. Merchants can use this mobile device for payment processing in-store or on-the-go, providing a convenient payment experience. The portability and flexibility of the small-sized terminal empower merchants to accept payments anytime and anywhere while ensuring the security and accuracy of payment information.



Specification:

Parameter Performance
Image sensor Mono CMOS
Pixel 1280(H)× 800(V)
Shutter Global shutter
Frame rate Up to 60fps
Illumination White light
Aiming Red laser
Field of view Horizontal 39.5°,Vertical 26.1°
Decode type



2D



Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc.

  1D Standard one-dimensional code
  Postal Code Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc.





DOF*

EAN-13(13mil) 45~590mm
  Code 39(20mil) 45~930mm
  Code 39(10mil) 65~470mm
  Code 39(5.5mil) 70~340mm
  Code 39(3.9mil) 60~220mm
  Data Matrix(15mil) 50~420mm
  Data Matrix(10mil) 50~300mm
Resolution* 1D:2.5mil,Data Matrix:5mil,PDF417:3mil
Contrast* ≥20%



Angle **

pitch ±60°
  tilt ±180°
  skew ±60°
