M71 Keyboard PDA Scanner Smart Sim Card and Wifi Communication

M71 Keyboard PDA Scanner Smart Sim Card and Wifi Communication

  • Weight
    269g(including Battery)
  • Dimension
    160mm×71mm×17mm
  • Opertating System
    Android 9
  • CPU
    4/8 Core, 12nm, 2GHz
  • Ram
    2GB/3GB
  • Flash
    16GB/32GB
  • Screen
    4 Inches, IPS, WVGA 800*480, Visible Under Sunlight
  • Place of Origin
    China
  • Brand Name
    HST
  • Model Number
    M71
  • Minimum Order Quantity
    10PCS
  • Packaging Details
    corrugated paper box
  • Delivery Time
    5 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    4000 pcs/day

M71 Keyboard PDA Scanner Smart Sim Card and Wifi Communication

M71 Keyboard PDA Scanner Smart Sim Card and Wifi Communication



Description:

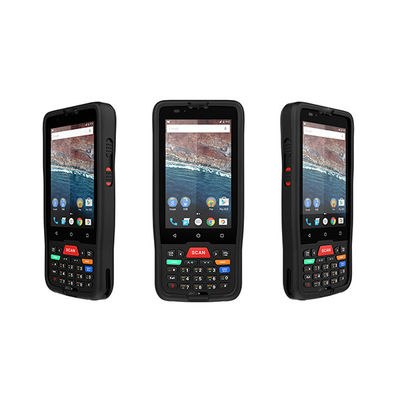

The M71 is a multi-functional handheld device that integrates a scanner, PDA, smart SIM card, and Wifi communication. It features an ergonomic full-sized keyboard for efficient data input. The powerful scanning capabilities can read various barcodes and QR codes, enabling convenient on-site data collection. The M71 also supports smart SIM cards for mobile payment and other applications. Its built-in Wifi connectivity allows wireless integration with other devices, boosting work productivity. With its compact and portable design, combined with its versatile functionalities, the M71 is an ideal choice for mobile office use.



Specification:

M71 Specifications
OS Android 9
CPU 2GHz, Quad/Octa Core, 12nm
MEMORY 2+16/3+32
Extend Slot MicroSD, support SDHC, up to 64GB;
One micro SIM connector
PC Communication USB 2.0 OTG : Type-C;Support TYPE-C Headset
Sensers Light, Proximity, 3D G sensor, Hall
LED Charging, Scan and System stauts
Charging Time <3.5 hours(Room Temperature)
Operation Duration 14 hours(Scan Every Nine Seconds,Connect WIFI,Insert SIM Card,The Screen Is Always On)
Data Collection
Scan Engine E3200-LE/E3250
2D Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional;MicroPDF417;PDF417;
Digimarc(OnlySupportE3250);UPC A/E Composites;
1D Auto discriminates all standard 1D codes including GS1
DataBar™ linear codes.
Post Australian Post; British Post; China Post; IMB; Japanese
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
Mail Code (RM4SCC)
NFC(Optional) 13.56MHz NFC
Wireless Connectivity
WLAN 802.11 ac/a/b/g/n
WWAN TDD-LTE (B38/B39/B40/B41)
FDD-LTE (B1/B3/B7/B8)
UMTS/HSDPA/HSPA/HSPA+ (900/2100 MHz)
GSM/EDGE/GPRS (900/1800MHz)
VoLTE LTE CAT6
CA Downlink 300Mbps, B1/B3/B7/B40/B41
WPAN BT 5/BLE
GPS GPS/A-GPS, GLONASS, Beidou ,Galileo
Physical Specifications
LCD 4 inch, 800*480, visible under sunshine
Touch GFF Captive Touch, Dragontrail Glass
Camera Auto focus 8Mega, with flash LED
Keypad 24 Numeric Keypad
Left/Right Scan Key, Left/Right K1,K2 user-defined Key
Back, HOME, Switch
Reciver Support
Speaker Min 90db at 10cm-1KHz Voice
Mic Noise Reduction Mic
Charging IO USB type-C
Charging Pad
Battery Removable 3800mAh-4000mAh
Dimension 160×71×17mm
Weight 269g
Environmental Specifications
Operation Temperature -20°C ~ +50°C
Storage Temperature -30°C ~ +70°C
Humidity 10% ~ 90%
Drop 1.5m, concrete, 12 drops
Tumble 600hits, 0.5m, Steel
IP IP65
ESD ±8kV Contact, ±15kV Air
Keypad lifecycle 500K
Accessories
Charging Cradle Support 1 device and 1 battery
Handstrap Black, Nylon
Battery Removable 4000mAh
