1d 2d Digital Keyboard Pda Barcode Scanner Industrial Grade Protection

1d 2d Digital Keyboard Pda Barcode Scanner Industrial Grade Protection

  • High Light

    1d pda barcode scanner

    ,

    industrial grade pda barcode scanner

    ,

    2d pda scanner

  • OS
    Android 9
  • CPU
    Octa Core CPU, 12nm
  • Extend Slot
    Micro SIM, Single Card Slot, TF Up To 128GB
  • PC Communication
    USB 2.0 OTG : Type-C, Support TYPE-C Headset
  • Battery
    Replacable 4000mAh
  • Dimension
    160mm×71mm×17mm
  • Place of Origin
    China
  • Brand Name
    HST
  • Model Number
    M71S
  • Minimum Order Quantity
    10PCS

1d 2d Digital Keyboard Pda Barcode Scanner Industrial Grade Protection

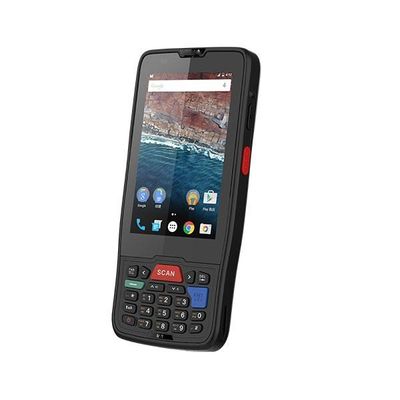

Digital Keyboard PDA Barcode Scanner Industrial Grade Protection



Description:

Equipped with an industrial-grade protection design, this scanner is built to withstand harsh conditions, such as dust, water, and drops, commonly encountered in industrial settings. It meets stringent durability standards to ensure reliable performance in demanding work environments.

The digital keyboard allows users to input data directly into the device, eliminating the need for an external keyboard or additional input devices. It provides a convenient and efficient solution for data entry tasks, especially when dealing with large amounts of information.

With its integrated barcode scanner, this device enables seamless barcode scanning for inventory management, product tracking, and other barcode-related applications. It supports the scanning of various barcode types, including 1D and 2D barcodes, ensuring versatility and compatibility with different systems.



Product specification:

Specifications
OS Android 9
CPU Octa Core CPU, 12nm
MEMORY 2+16/3+32
Extend Slot Micro SIM, Single card slot, TF up to 128GB
PC Communication USB 2.0 OTG : Type-C, Support TYPE-C Headset
Sensers Gravity sensor, proximity detector, Photosensitive sensor, Hall element (option version), status lamp
LED Charging, Scan and System stauts
Charging Time <3.5 hours(Room Temperature)
Operation Duration 15 hours
Data Collection
Scan Engine E3250/E3200
2D Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites;Digimarc(E3250 supports)
1D Auto discriminates all standard 1D codes including GS1,code39,code 128,code93
DataBar™ linear codes.
Post Australian Post; British Post; China Post; IMB; Japanese
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
Mail Code (RM4SCC)
NFC(Optional) 13.56MHz NFC
Wireless Connectivity
WLAN 802.11 a/b/g/n/ac, 5G FEM PA
WWAN NA GSM: 900/1800
UMTS: B1/B8
FDD_LTE:B1/3/7/8
TDD_LTE:B38/39/40/41
VoLTE LTE CAT6
CA Downlink 300Mbps, B1/B3/B39/B40/B41
WPAN BLE V5.0
GPS GPS/Glonass/Beidou,Assisted GPS
Physical Specifications
LCD 4.0 inch, 800*480, visible under sunshine
Touch Capacitive screen, High strength glass
Camera Auto focus 8Mega, with flash LED
Keypad 23 Numeric Keypad; Left/Right Scan Key, Left/Right Kl,K2 user-defined Key, Back, Home, Switch
Reciver Support
Speaker Double speaker, Greater than 95db
Mic Double Mic with Noise Reduction
Charging IO USB type-C
Battery Removable 4000mAh
Dimension 160mm×71mm×17mm
Weight 269g(With battery)
Environmental Specifications
Operation Temperature -25°C to 55°C
Storage Temperature -30°C to 70°C
Humidity 5%-95% non-condensing
Drop 1.5m on concrete, 3 times on each side
Tumble 600 hits of 0.5m tumble
IP IP65
ESD ± 8 kV contact discharge, ± 15 kV air discharge,
